Print a [Day/night] application

Introduction

With the [Day/night] recipe you can create an application for a light box. During the day the light is off. During the night the light is on.

Procedure

  1. Launch the ONYX Thrive RIP Queue.
  2. Open a PDF that you want to print using the [Day/night] recipe.
    NOTE

    Your PDF must contain one image that will be used for the Day image and the Night image.

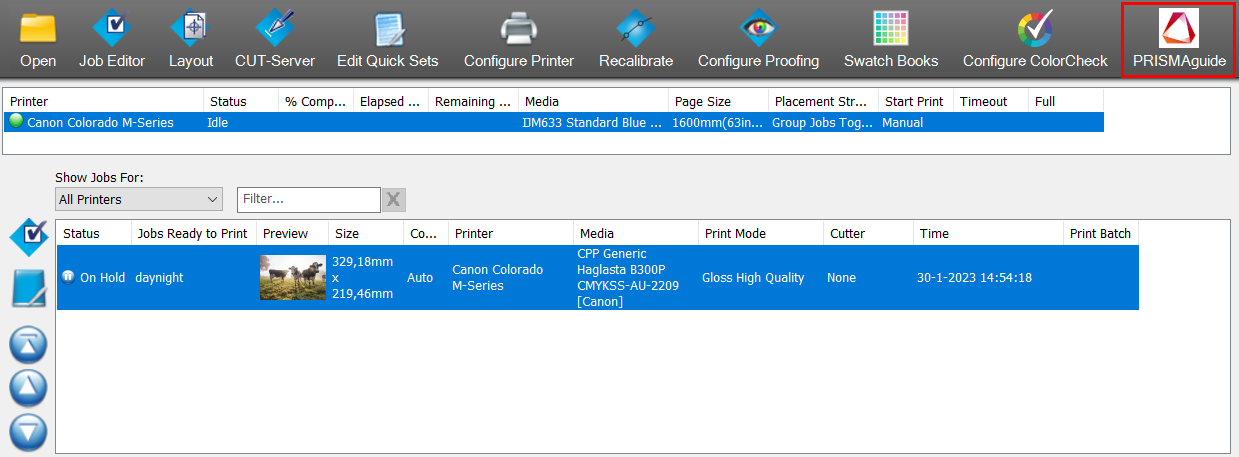

  3. Select your PDF and click on [PRISMAguide].

  4. Select the [Day/night] recipe.

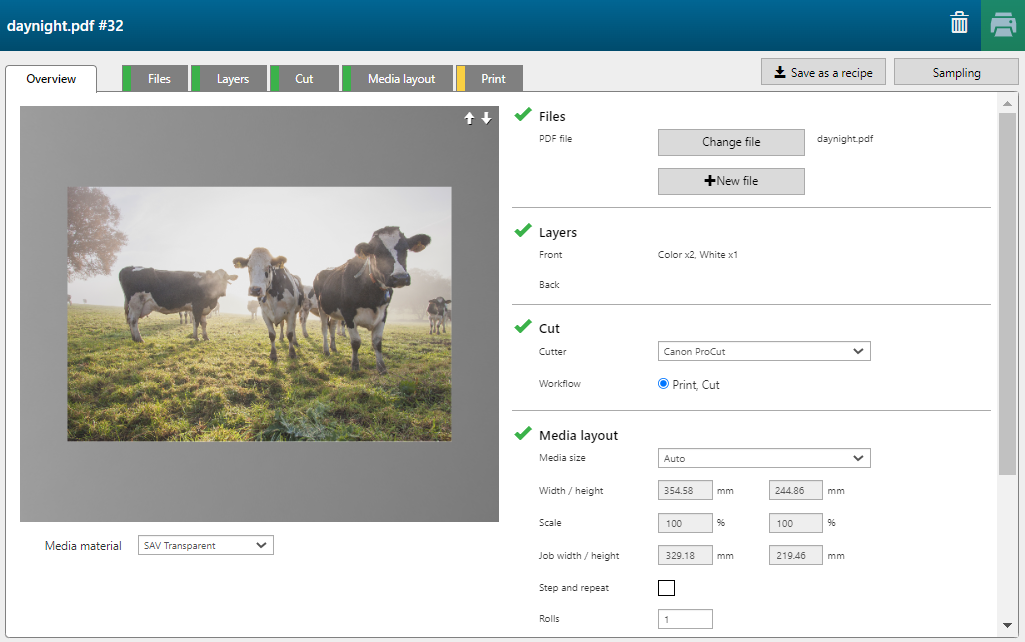

    The [Overview] tab opens.

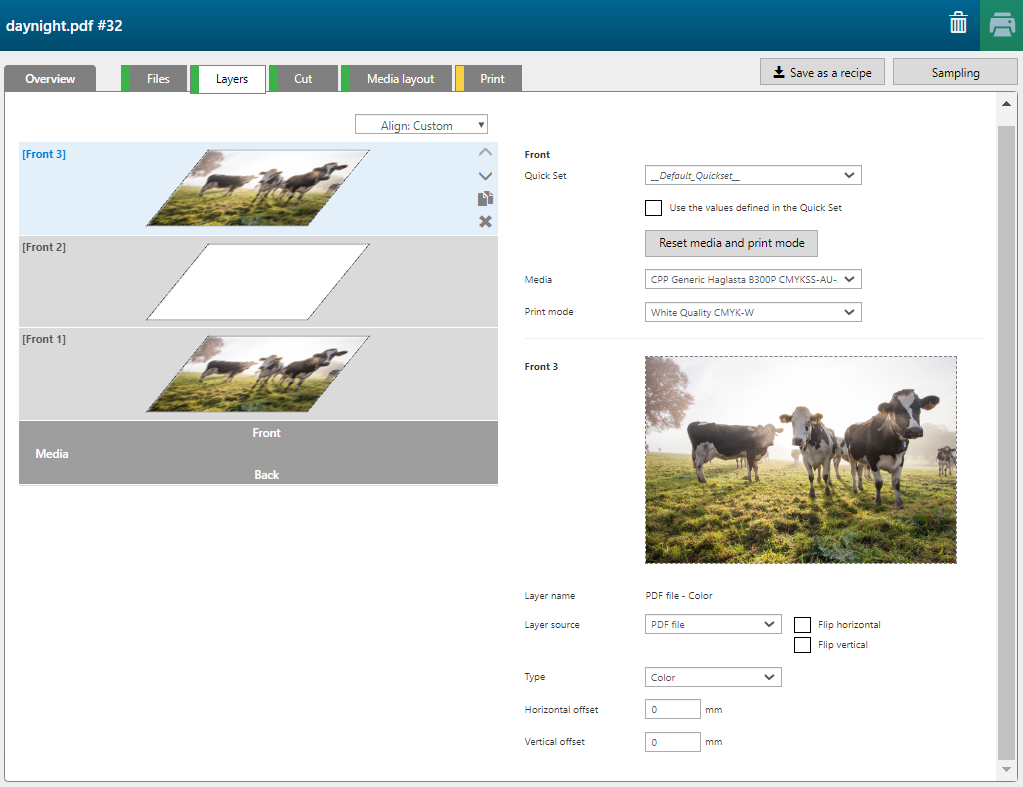

  5. Open the [Layers] tab.

    The recipe automatically assigns the correct settings per layer.

    Layer

    [Layer source]

    [Type]

    Remark

    [Front] 3

    PDF file

    [Color]

    The image is printed in CMYK.

    [Front] 2

    PDF file

    [Bounding box mask]

    [Color]: [White]

    The complete image (rectangle) is printed in white.

    [Front] 1

    PDF file

    [Color]

    The image is printed in CMYK.

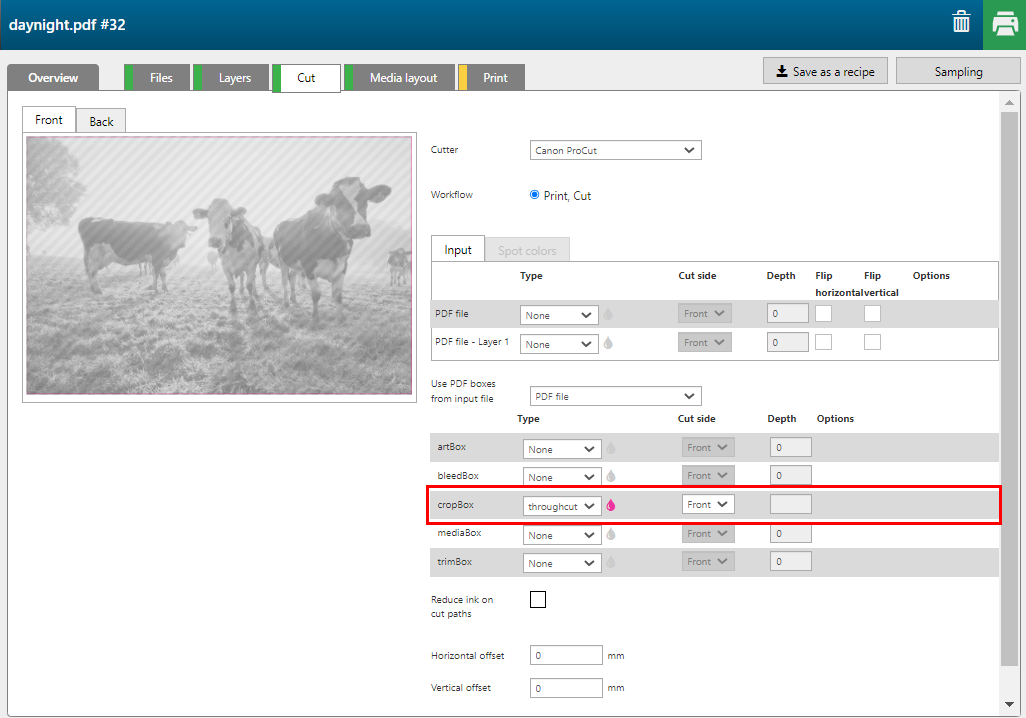

  6. Select the [Cut] tab.

    The [CropBox] is defined as [throughcut] path.

  7. Open the [Print] tab and check the settings.
  8. Click on the [Print] button to submit the job to the ONYX Thrive RIP Queue.
