Manage media profiles in Onyx

1

Open the Onyx RIP queue.

2

Select the Océ Colorado 1640 printer name.

3

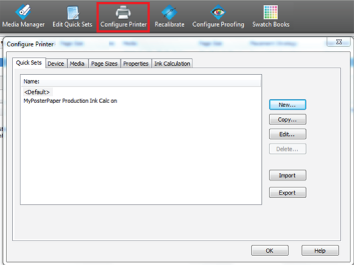

Click on [Configure printer].

The [Configure printer] menu opens.

4

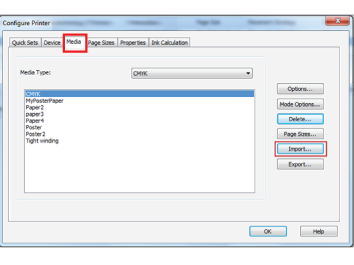

Select the [Media] tab and click on [Import].

A window opens.

5

Under [Files and Type] select Media Library Files (*.OML).

6

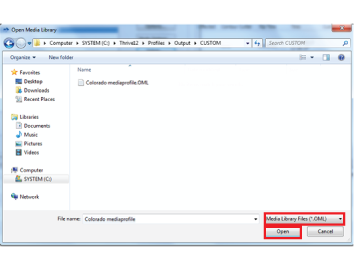

Click on [Open] and browse to find your media library files (*.OML).

7

Click on [Ok]. The window closes.

8

In the RIP queue you can see that the media profiles are installed and can be used.

1

Open the Onyx RIP queue.

2

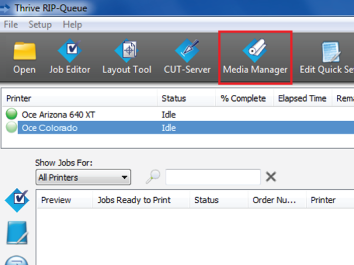

Click on [Media Manager].

The Media Manager application opens.

3

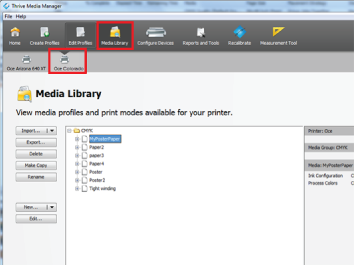

Click on the Océ Colorado 1640 printer icon and click on [Media library] above.

4

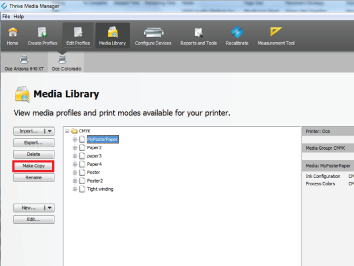

Select the media profile from the list and click on [Make Copy].

A new window opens.

5

Fill in the new media profile name and click on [Ok] for the new ICC workflow.

A new window opens.

6

Follow all the steps. For more information on the general steps use the Onyx documentation.

7

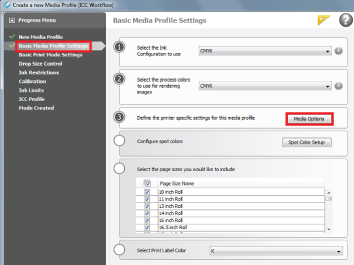

You can change the Océ Colorado 1640 specific media category and media settings under [Basic Media Profile Settings].

Click on [Media options].

8

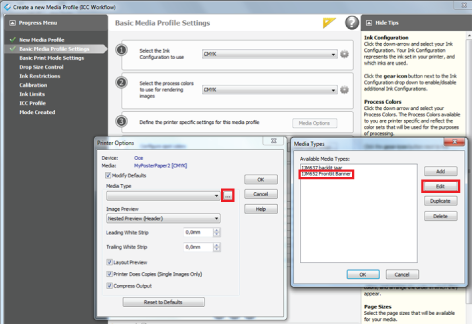

Click on the three dots. In the new window, select a media type and click on [Edit].

9

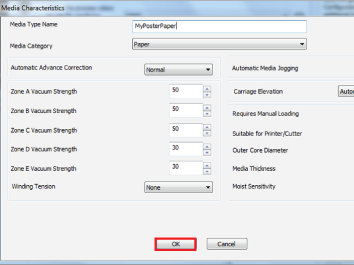

A new window opens. You can choose a new media category and or change the media settings. For more information, see Choose a media category, Change the media settings.

NOTE

• When you make a copy of the media profile and you edit the media type, the media category should already be correct for the media type.

• When you still want to change the media category, note that the media settings automatically change to the default values used for that media category.

10

Click on [Ok] the window closes.

11

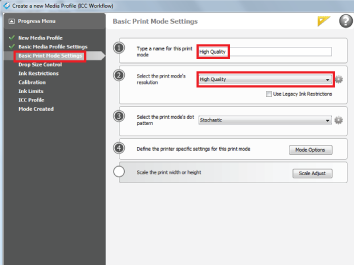

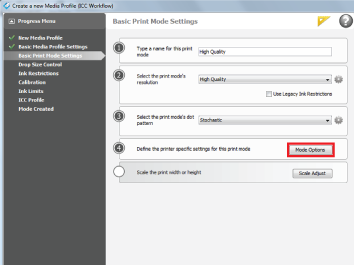

Follow the steps. You can change the Océ Colorado 1640 specific print mode settings under [Basic Print Mode Settings].

You can change the print mode and fill in the print mode. For more information, see Select a print mode.

NOTE

Fill in the same name as the selected print mode to avoid confusion.

12

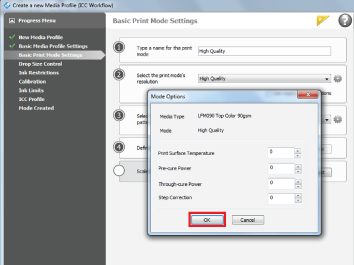

Click on [Mode options] and change the mode options. For more information, see Change the media settings.

13

Click on [Ok] the window closes.

14

Finish all the steps to create the media profile.
