Disconnect the network cable and the mains supply cable

Procedure

  1. IMPORTANT

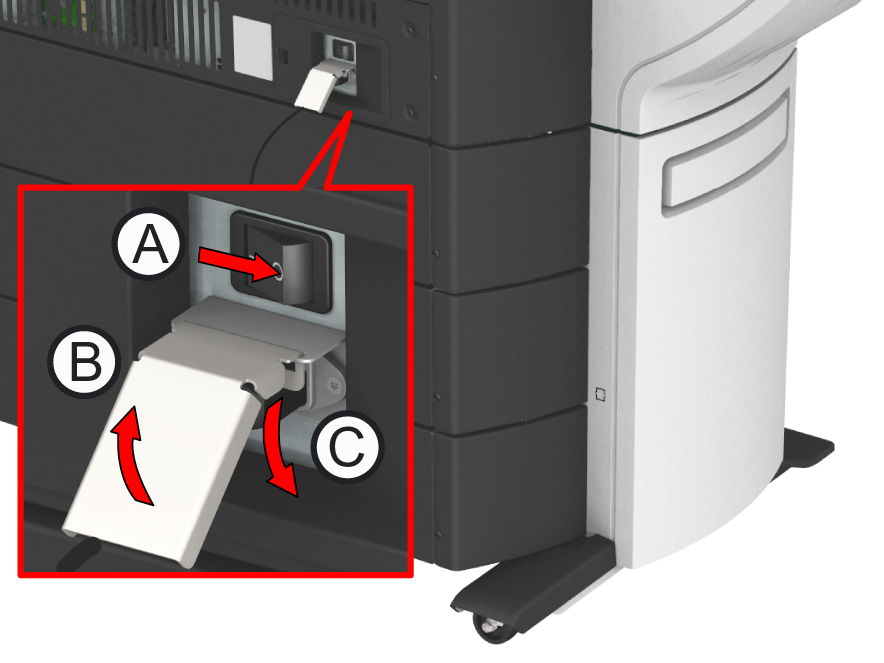

    Make sure the main power switch (A) is in 'off' position.

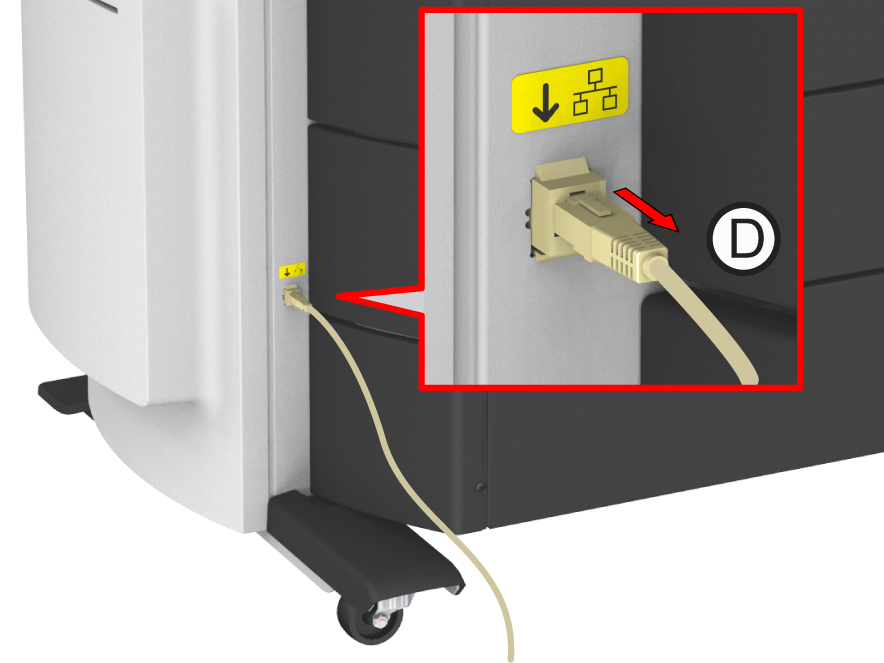

    Disconnect the network cable from the network connection at the right back of the printer (D).
  2. Disconnect the mains supply cable from the wall socket.
  3. Lift the protection cover up (B).
  4. Disconnect the other side of the mains supply cable from the power connection at the right back of the printer ( C).
