Define the cluster printers

This topic contains the following instructions.

  1. Select the main printer or the first printer of a cluster

  2. Select the next printers of the cluster

  3. Change the cluster printers

What printers are listed

The printers that are in the list:

  • Are registered in the cloud service administration portal.

  • Are enabled to use PRISMAsync Remote Match.

  • Are licensed. Your Service organization makes the PRISMAsync Remote Match license available in On Remote Server (ORS). This license is based on the serial number of the printer.

When you have defined the first cluster printer, the list is refreshed. Printers that have the same printer series and printer software version as the first printer are now visible. They can be selected as next printers in the cluster.

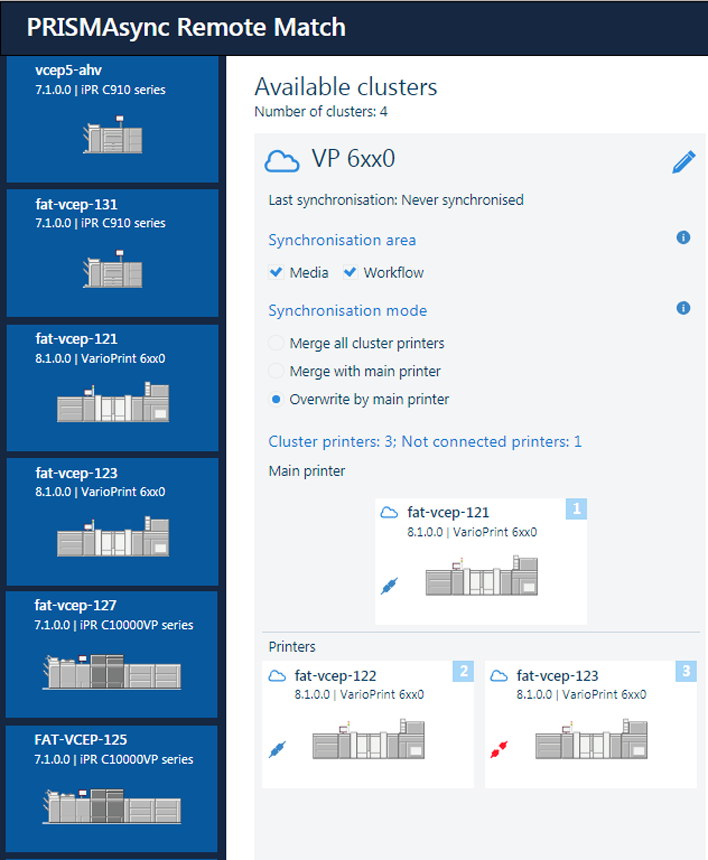

List of printers

Required authorization

Cloud service administrator that is also listed as PRISMAsync Remote Match user in the cloud service administration portal.

Select the main printer or the first printer of a cluster

The following synchronization modes use a main printer.

  • [Merge with main printer ]: The resource entries of cluster printers 2 and higher are extended with the resource entries of the main printer.

  • [Overwrite by main printer]: The resources of the printers 2 and higher are overwritten by the resources of the main printer.

For the [Merge all cluster printers] mode are the resource entries of each cluster printer extended with the resource entries of all other cluster printers. So, this mode does not know a main printer.

  1. For an already created cluster, click next to the cluster name.

    Edit a cluster

  2. Drag and drop a printer from the printer list to the empty [Main printer] field or [Printers] field.

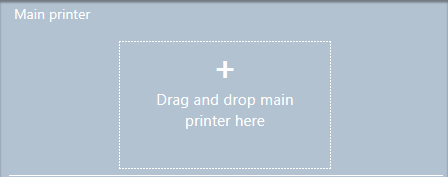

    Main printer field

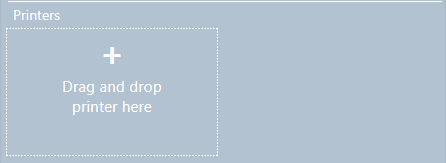

    Printers field

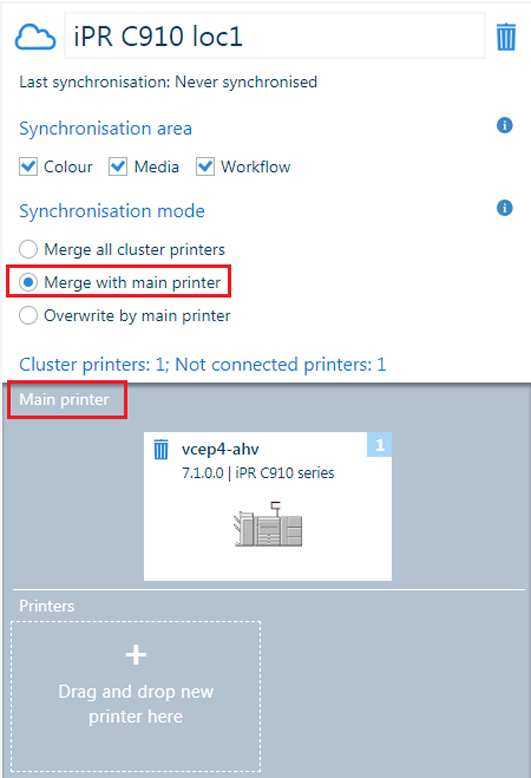

    Select main printer

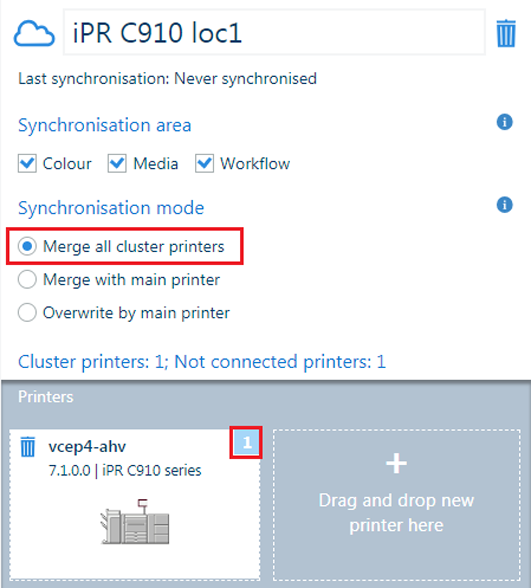

    Select first printer
NOTE

When a printer is already part of another cluster, the synchronization areas cannot overlap.

Select the next printers of the cluster

The printer list now only contains printers that have the same printer series and printer software version as the main printer or the first printer.

  1. Drag and drop a new printer from the list to the empty [Printers] field.

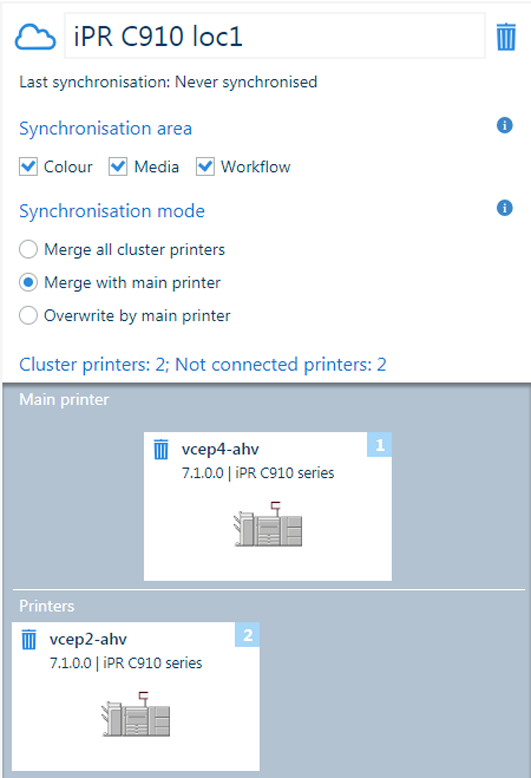

    Second printer added

  2. Repeat step 1 until all required cluster printers are added.

  3. Click [Save].

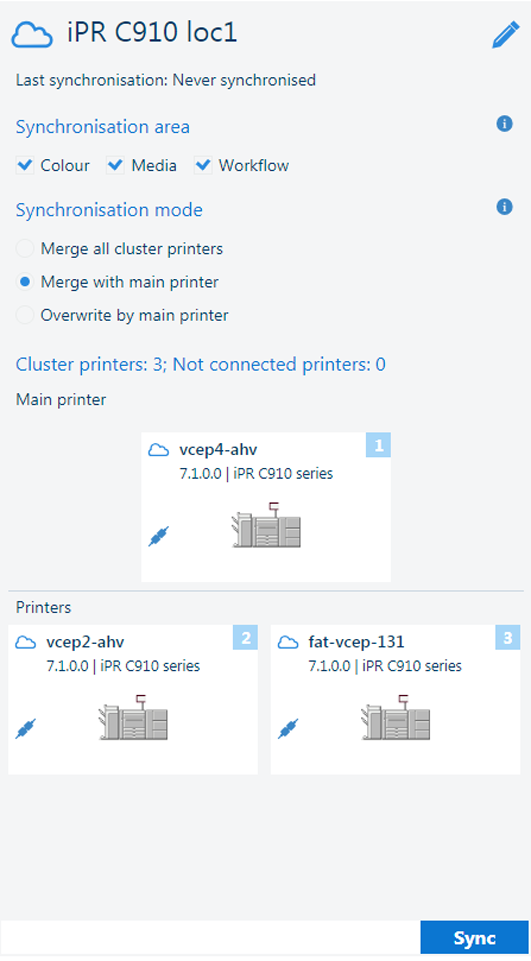

    Third printer added

Change the cluster printers

You can change the cluster as long as it is not busy with synchronizing. You can add printers, remove printers, or change the synchronization priority by moving printers.

  1. Click next to the cluster name.

    Edit a cluster

  2. To remove a printer from the cluster, click the trash symbol next to the printer name. All printers that have a lower priority (and higher number) are automatically moved.

    Delete printers from cluster

  3. To change the priority of a printer, drag and drop the printer to another position.

  4. To add a new printer to a cluster, drag and drop a printer from the printer list.

  5. Click [Save].

NOTE

When you change the cluster definition of a cluster that had been synchronized before, the [Last synchronization:] field shows: [Never synchronized].
