Configure JDF ticket transformation

This topic contains the following instructions:

• Enable or disable JDF ticket transformation

• Import an XSLT style sheet

• Export an XSLT style sheet

• Change order of the XSLT style sheets

• Disable or enable an XSLT style sheet

Enable or disable JDF ticket transformation

1. Open the Settings Editor and go to: [Preferences]  → [System settings]  → [Printing workflows] .

   [System settings] tab

2. Use the [JDF ticket transformation] option to enable or disable JDF ticket transformation.

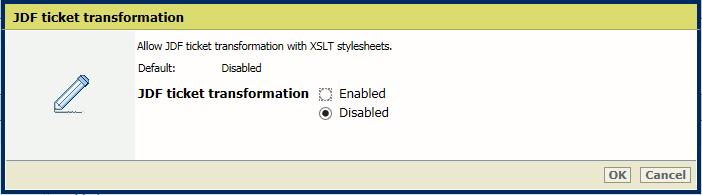

   [JDF ticket transformation] option

3. Click [OK].

Go to the XSLT style guides

Open the Settings Editor and go to: [Workflow]  → [JDF ticket transformation] .

[JDF ticket transformation] tab

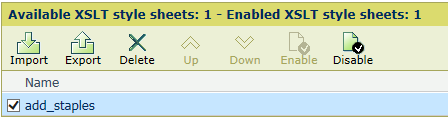

Enabled and disabled style sheets

Import an XSLT style sheet

1. Click [Import].

   [JDF ticket transformation] menu

2. Browse to the XSLT style sheet and select the XSLT file.

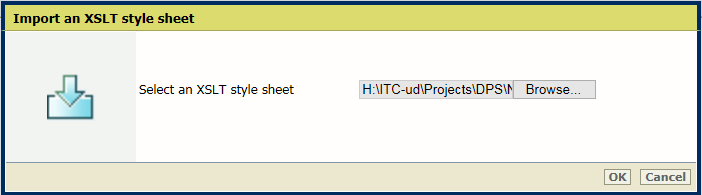

   Import an XSLT style sheet

3. Click [OK].

Export an XSLT style guide

1. Select the XSLT style guide.

   [Export] button

2. Click [Export].

3. Browse to the location where you want to store the XSLT file and save the XSLT file.

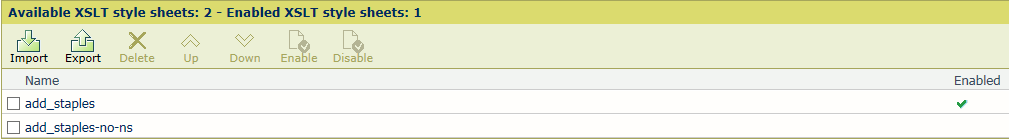

Change order of the XSLT style guides

The XSLT style sheets are executed according to the order they are listed in the Settings Editor.

[Up] and [Down] buttons

1. Select the XSLT style guide.

2. Click [Up] or [Down] to move the XSLT style guide in the list.

Disable or enable an XSLT style guide

Only enabled XSLT style sheets are executed.

[Enable] button

[Disable] button

1. Select the XSLT style guide.

2. Click [Enable] or [Disable]. The list of XSLT style guides shows which XSLT style sheets are enabled.
