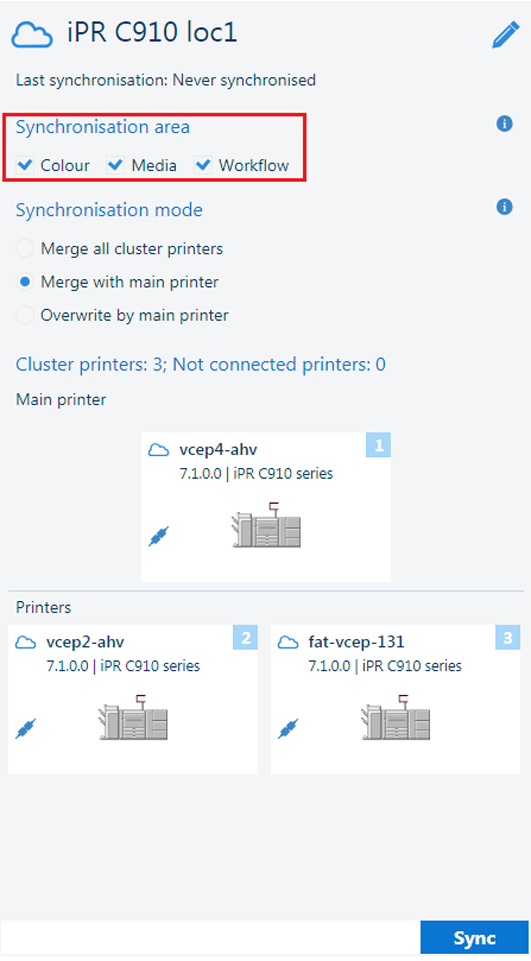

The cluster definition includes the synchronization area. The synchronization area determines what part of the printer configuration must be synchronized. The synchronization area contains three options for a cluster of color printers and two options for a cluster of B&W printers.
[Color] (only applies to a cluster of color printers)
[Media]
[Workflow]
Synchronization area options in a cluster of color printers
NOTE
The printer configuration cannot be changed in PRISMAsync Remote Match.
Each synchronization area option contains a fixed set of resources.
A resource is a list of named items, for example: [Automated workflows].
A resource entry is one of the named items, for example the automated workflow: Booklet.
You find the resources in the Settings Editor or on the control panel of the cluster printers.
The [Color] option also includes color settings.
You find these color settings on the [Color calibration] and [Color defaults] tabs in the Settings Editor of the cluster printers.
The table below shows the resources and settings of the synchronization area options.
|
Synchronization area |
Setting Editor: Resources |
Setting Editor: Settings |
Control panel: Resources |
|---|---|---|---|
|
[Media] |
|
||
|
[Workflow] |
|
||
|
[Color] |
|
|
[Trapping presets] |
NOTE
Factory defined resource entries are not synchronized because they cannot be changed or deleted.
In a cluster of color printers the [Media] and [Color] options can only be selected together. The media configuration is always dependent on the color configuration.
