Print an application based on a new recipe

Introduction

This topic describes how you can print an application from an ONYX job, using a new recipe. When you assign a recipe to your job, all print settings are set to the predefined recipe specifications.

In this example we use the new recipe we created in a previous topic. See Create a new application in PRISMAguide XL Engine for more information on how to create new recipes.

Procedure

  1. Open a PDF file in ONYX Thrive.

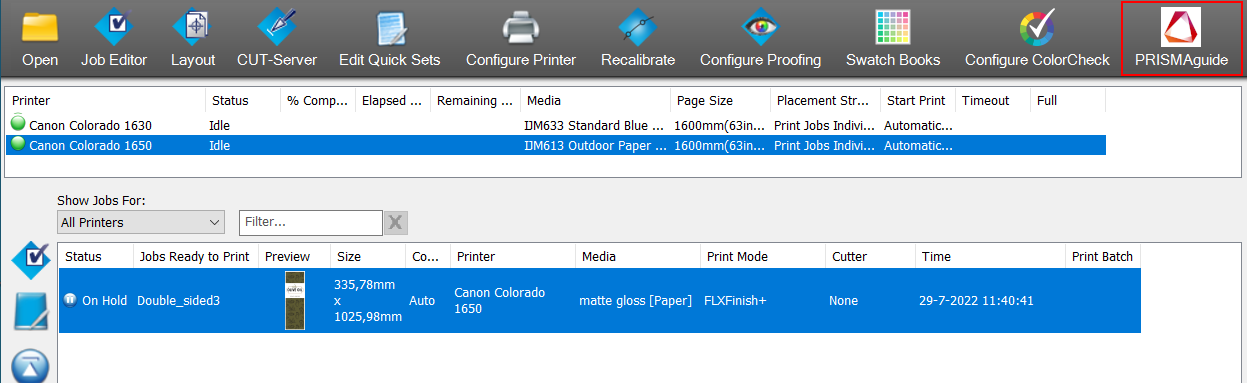

  2. Select the PDF file and click on [PRISMAguide].

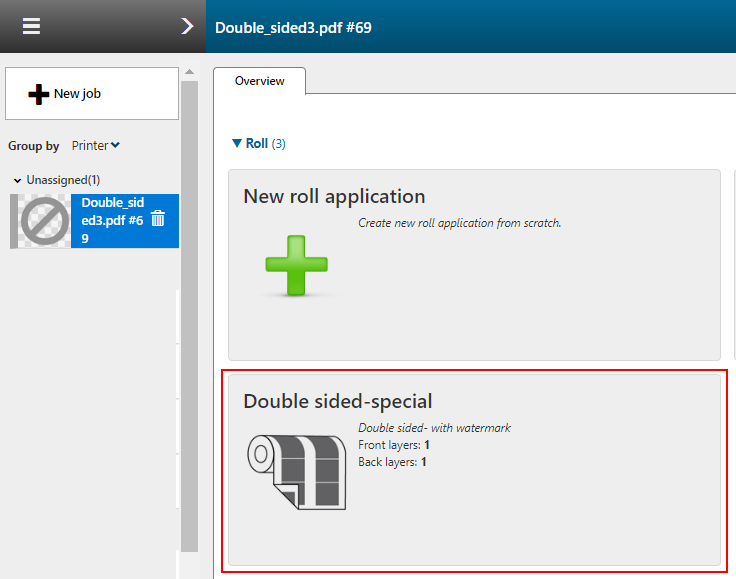

  3. Select the PDF file in the job list and click on your new recipe.
  4. A new PRISMAguide XL Engine job is created with the new file.

    See that an input file is added which is part of the recipe.

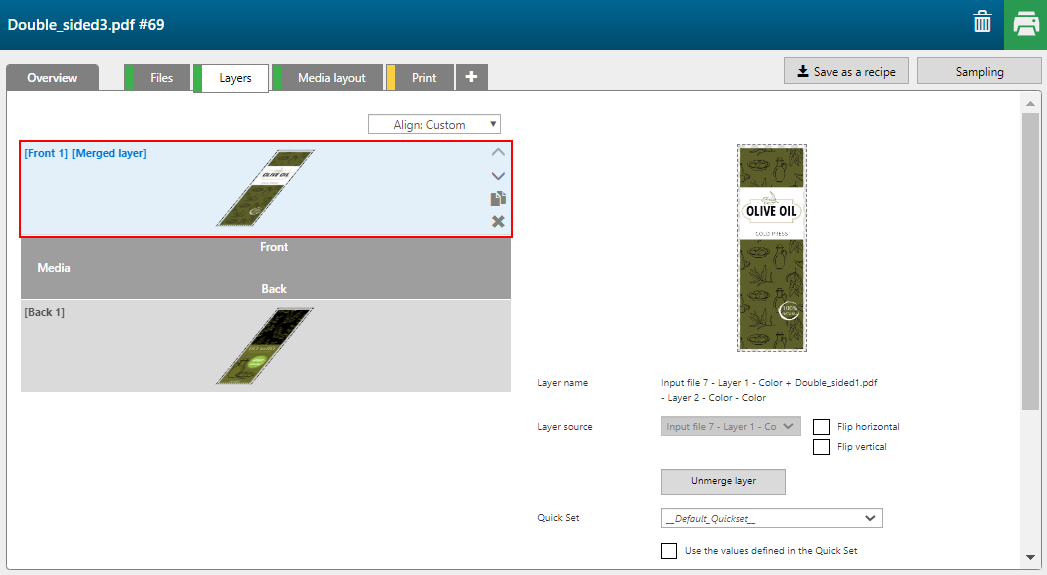

  5. Open the [Layers] tab.

    Check the print settings of each layer. All the print settings are preserved (i.e. the same media profiles, print modes, layer types, locked input files, et cetera.). See that the front layer is merged.

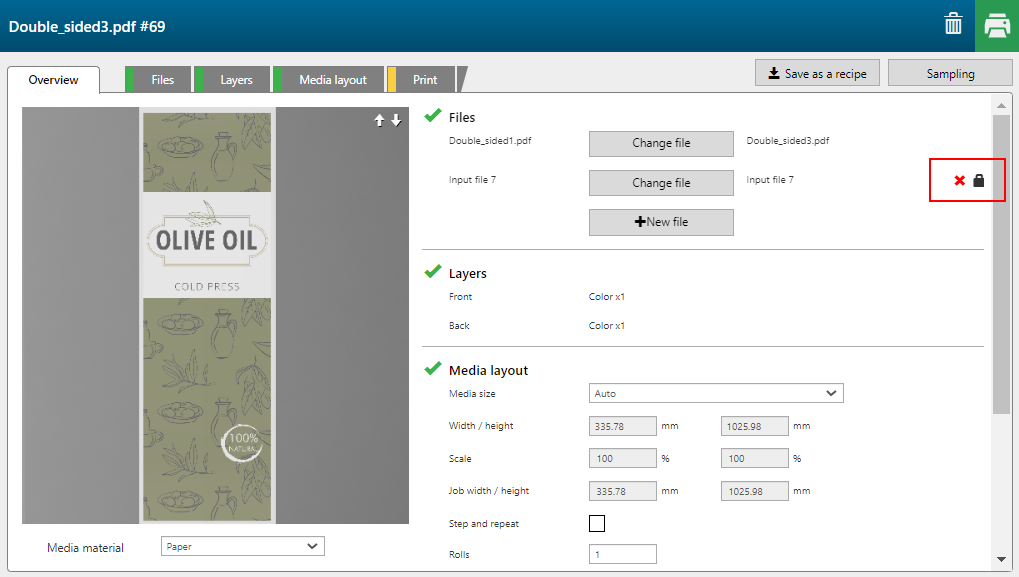

  6. Check the preview and the settings, then click on the [Print] button.
