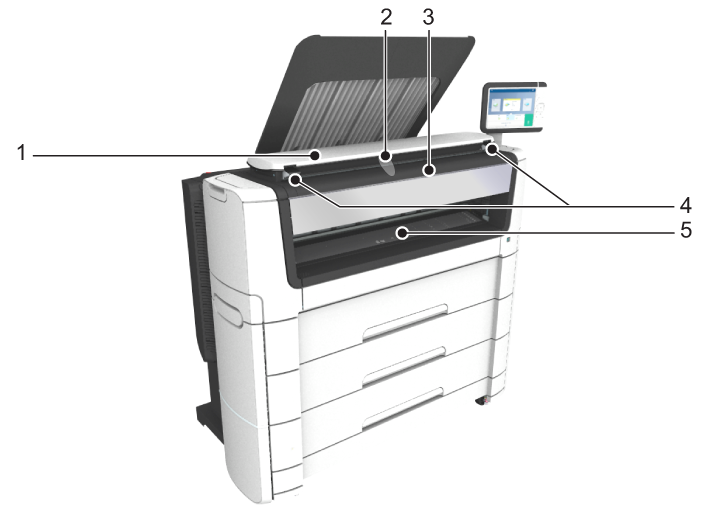

The components of the scanner (optional)

1

[top cover]

Closes off the scanner.

2

[output refeed protector]

Prevents that your output is refed into the scanner.

3

[original feeding table]

Use the [original feeding table] to feed the original into the scanner (face up).

4

[open levers]

Use the [open levers] to open the top cover.

5

[originals exit]

Exit for the scanned original.

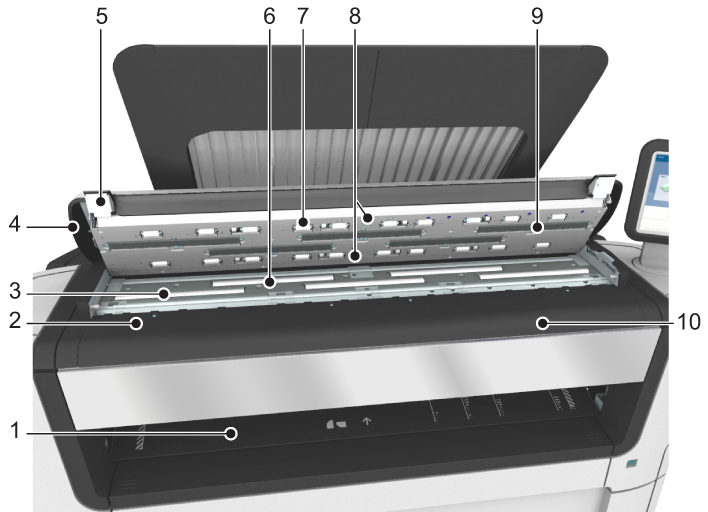

1

[originals exit]

Exit for the scanned original.

2

[original size ruler]

Use this ruler to position the original.

3

[original feed rollers]

A set of rollers used to transport the original.

4

[top cover]

Closes off the scanner.

5

[open levers]

Use the open levers to open the top cover of the scanner.

6

[original support rollers]

A set of rollers to guide the original.

7

[scanner top cover rollers]

A set of rollers in the top cover to guide the original.

8

[original sensors]

Sensors to detect the original.

9

[transparent contact plates]

Cover of the image sensors.

10

[original feeding table]

Use the original feeding table to feed the original into the scanner (face up).
