When you add or edit a spot colour definition, you can print a patch chart to check how the set CMYK values and small variations on these values appear on media. The printed colours and the CMYK values of the patches give the best visual match to fine-tune the spot colour for the given media family.

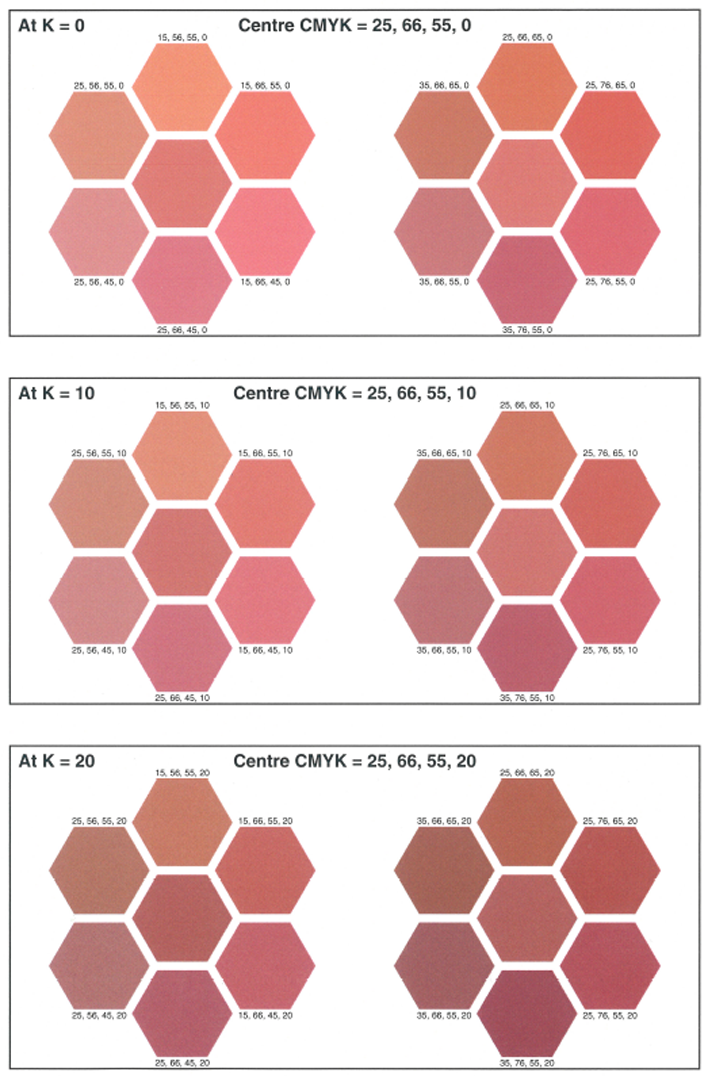

A patch chart shows 39 patches that each have a variation of the set CMYK value. You print a patch chart on the media that belong to the media family of the CMYK value of the spot colour.
You print the patch chart on media that belong to the media family of the CMYK values. A patch chart shows 39 patches with variations of CMYK values. The chosen step size determines the degree of patch variations in percentages (1% - 20%).
|
Feltvariasjoner
|
|
|

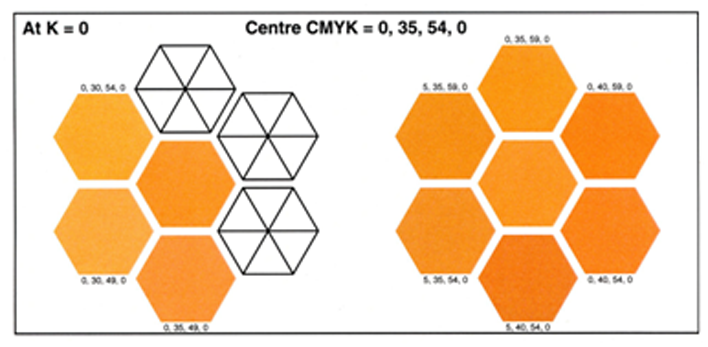

Felt med et svart kryss Hvis en fargeverdi er lik fargeverdien til et annet felt, blir det ene av disse feltene vist som et hvitt felt med svart kryss. |
|
|

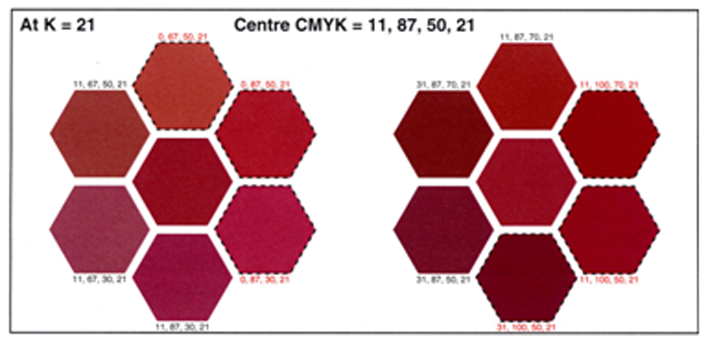

Felt med rød tekst Hvis en CMYK-verdi kommer under 0 % eller over 100 %, blir verdien kuttet. Denne nye CMYK-verdien skrives ut i rød tekst, og feltet får en stiplet linje. |
|
