When you add or edit a spot colour definition, you can print a patch chart to check how the set CMYK values and small variations on these values appear on media. The printed colours and the CMYK values of the patches give the best visual match to fine-tune the spot colour for the given media family.

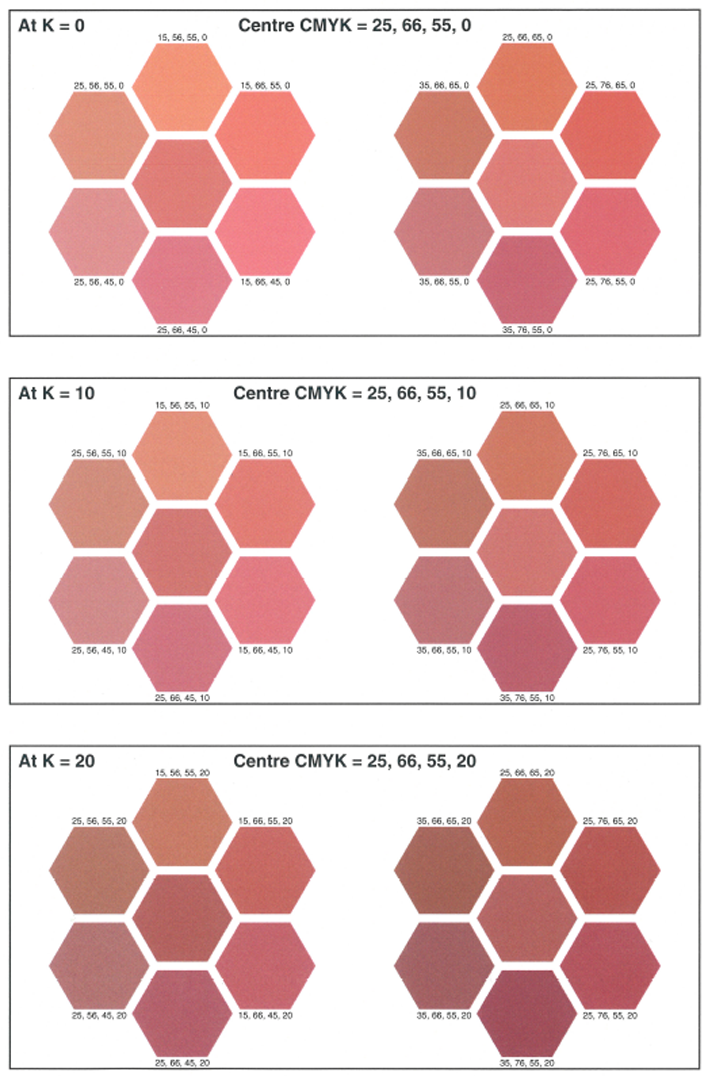

A patch chart shows 39 patches that each have a variation of the set CMYK value. You print a patch chart on the media that belong to the media family of the CMYK value of the spot colour.
You print the patch chart on media that belong to the media family of the CMYK values. A patch chart shows 39 patches with variations of CMYK values. The chosen step size determines the degree of patch variations in percentages (1% - 20%).
|
Aluevaihtelut
|
|
|

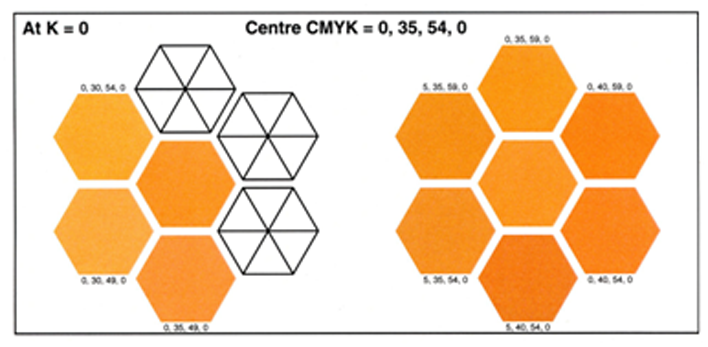

Alueet, joissa on musta rasti Jos väriarvo on sama kuin toisen alueen väriarvo, toinen alueista näkyy valkoisena alueena, jossa on musta rasti. |
|
|
Alueet, joissa on punaista tekstiä Jos CMYK-arvo on alle 0 % tai yli 100 %, arvo leikataan. Tämä uusi CMYK-arvo tulostetaan punaisena tekstinä, ja alueella on pisteviiva. |
|
