Install the PRISMAguide XL Connector

Before you begin

  1. Log in to the computer as an administrator.

    Install the PRISMAguide XL Connector on the same computer where also the ProCut Server is installed.

  2. Make sure the correct installation program for the PRISMAguide XL Connector is available on your computer (e.g. "PRISMAguideXLConnector.exe").

  3. Close all your applications, because your computer might restart during the installation.

This instruction applies when you use the following Windows version.

  • Windows 10 Professional (64-bit)

Procedure

  1. Double-click on PRISMAguideXLConnector.exe.

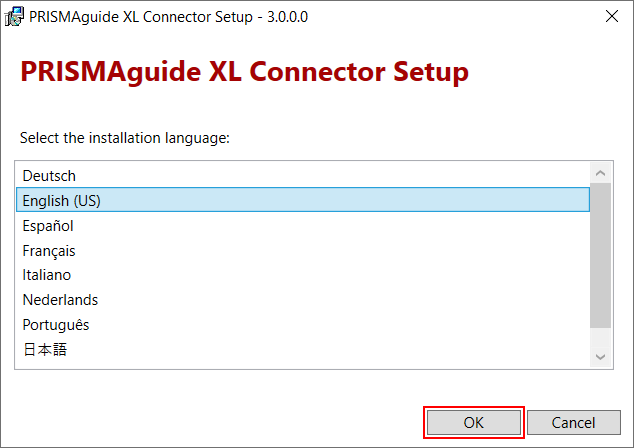

  2. Select your language and click on [OK].

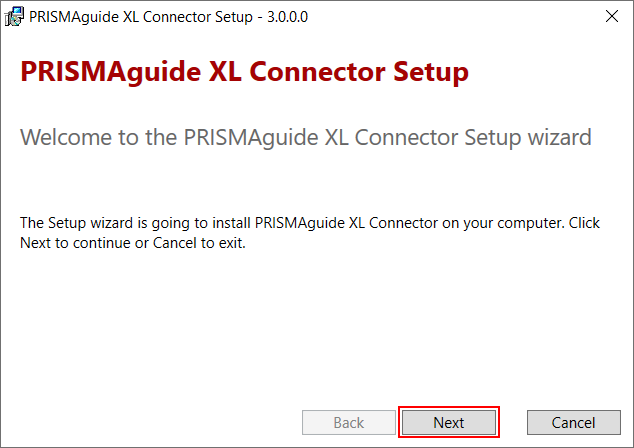

  3. Click on [Next].

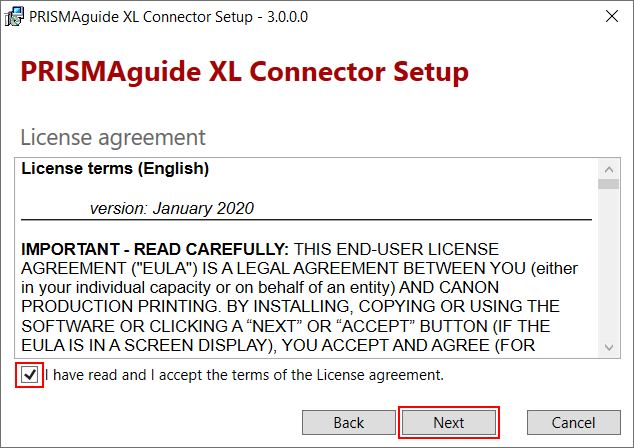

  4. Accept the License agreement and click on [Next].

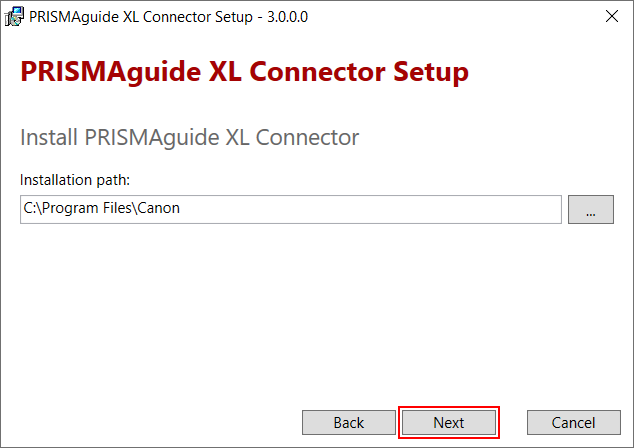

  5. If necessary change the proposed destination path and click on [Next].

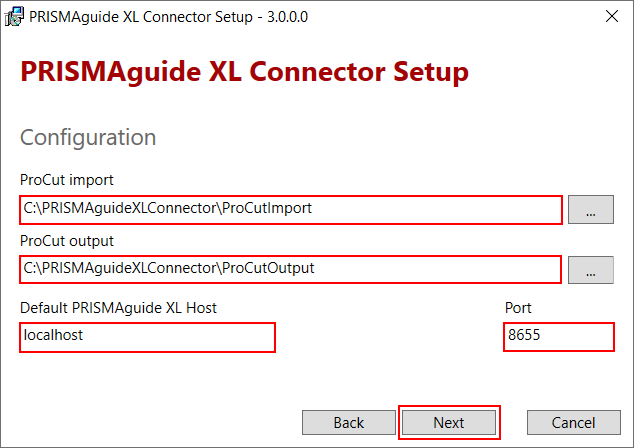

  6. If necessary, change the proposed data storage paths, the port number and default PRISMAguide XL host.

    • [ProCut import] 

      Set the ProCut import hot folder

    • [ProCut output] 

      Set the ProCut output hot folder

    • [Port] 

      Set the service port to connect with PRISMAguide XL Engine

    • [Default PRISMAguide XL Host] 

      Set IP address for the default PRISMAguide XL. This is for files that arrive from ProCut in PRISMAguide XL Connector and were not originally sent to ProCut from PRISMAguide XL Engine but from an other application.

    Click on [Next].

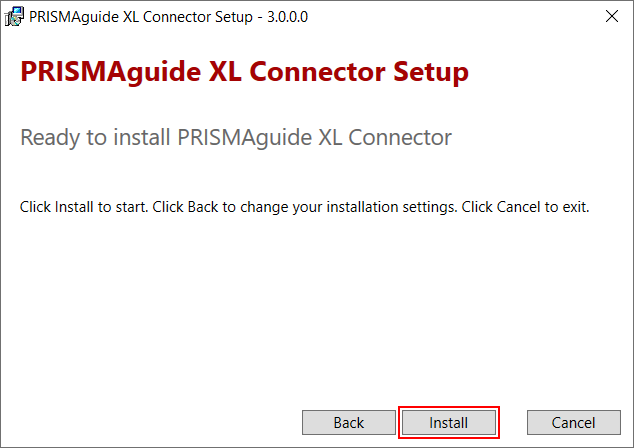

  7. Click on [Install].
  8. The software will now be installed on your computer.

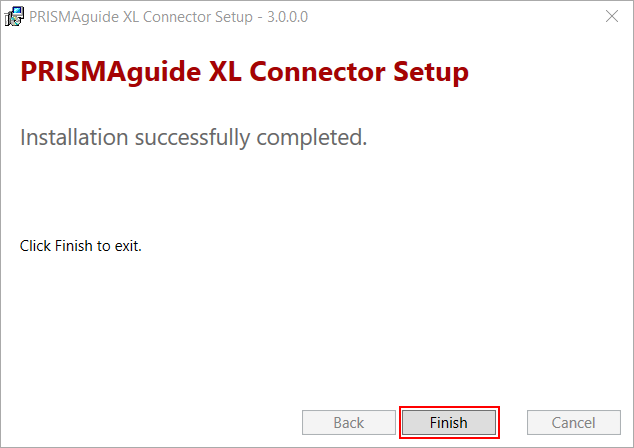

  9. Click on [Finish].

What to do next

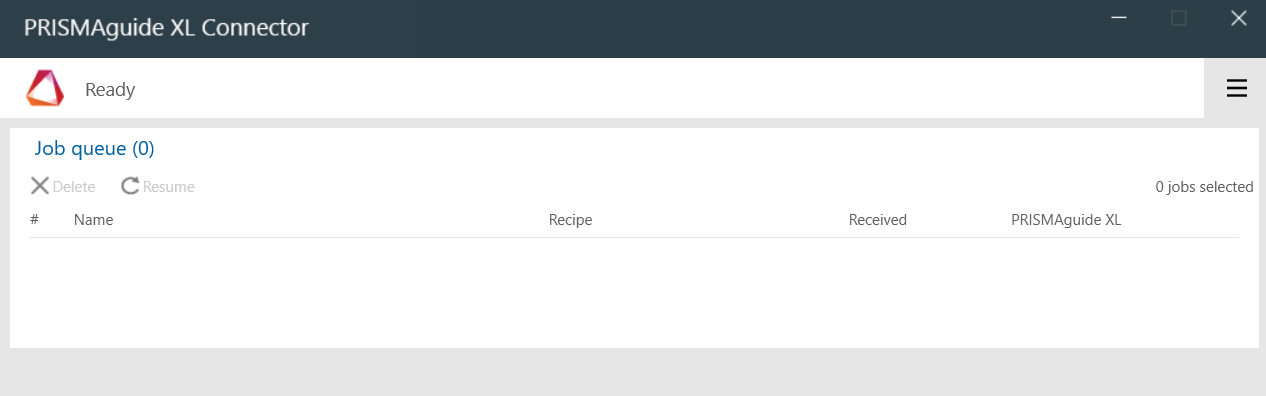

Open the user interface by double-clicking on the icon on your desktop or via the start menu.

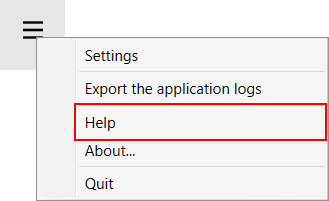

To learn about the functionality of the user interface open the online help via the [Menu] button.

Parent topic:
ProCut automations
