The pin cure filters are located on the left-hand and right-hand sides of the printhead carriage. There are 2 pin cure filters in total. The user interface gives a warning when you must replace the pin cure filters.
Use Colorado XL-series prescribed:
Microflex gloves for handling UVgel
Pin cure filters
CAUTION
Always wear protective gloves when opening the covers of the machine.
CAUTION
Wear gloves when contact with ink or maintenance materials is possible. Gloves should always overlap sleeves. Follow the ink related Safety Data Sheets (SDS) guidelines carefully in order to ensure maximum safety.
|
1 |
On the user interface, tap [Maintenance], then [Replace the pin cure filters] and tap [Start maintenance action]. The printhead carriage automatically moves into the correct position. |
|
|
2 |
Open the top cover. |
|
|
3 |
Put on the Colorado XL-series approved gloves. |
|
|
4 |

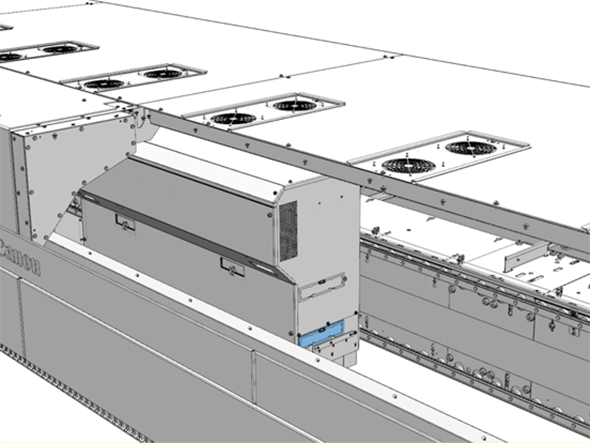

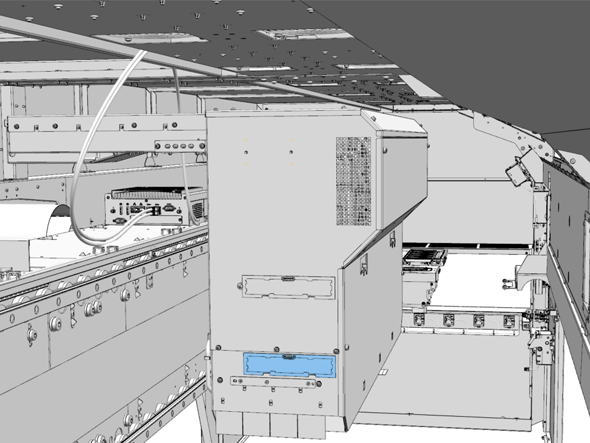

Locate the pin cure filters.
|
|
|
5 |

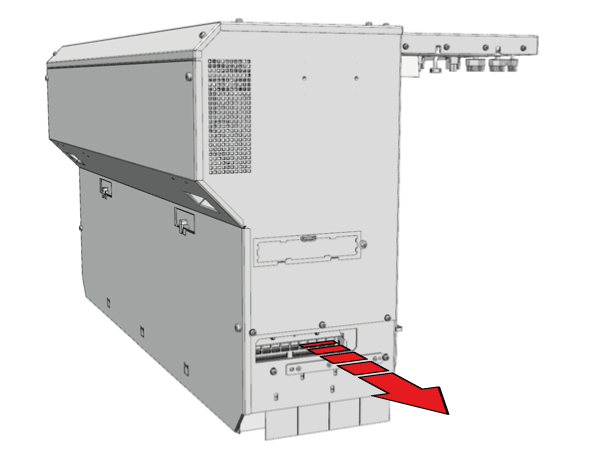

Pinch the handle of the frame to remove the pin cure filter from the printhead carriage. |
|
|
6 |

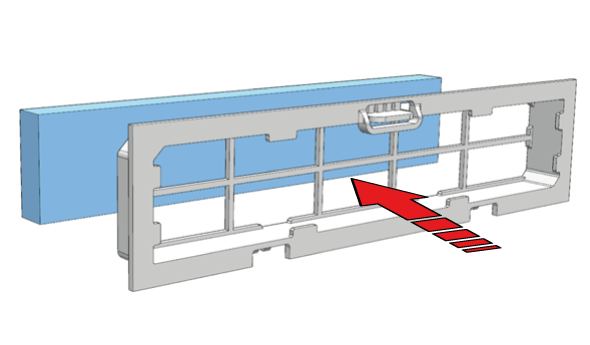

Remove the filter from the frame. You only replace the filter filling. |
|
|
7 |

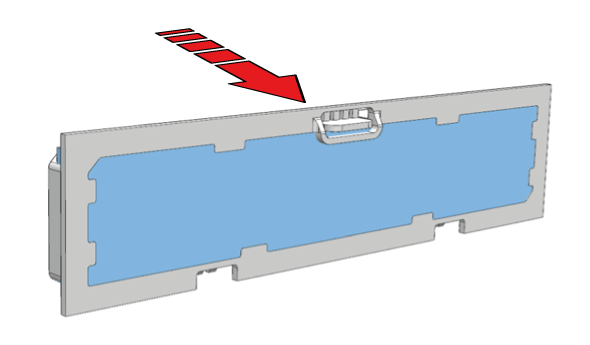

Place a new filter in the frame. |
|
|
8 |

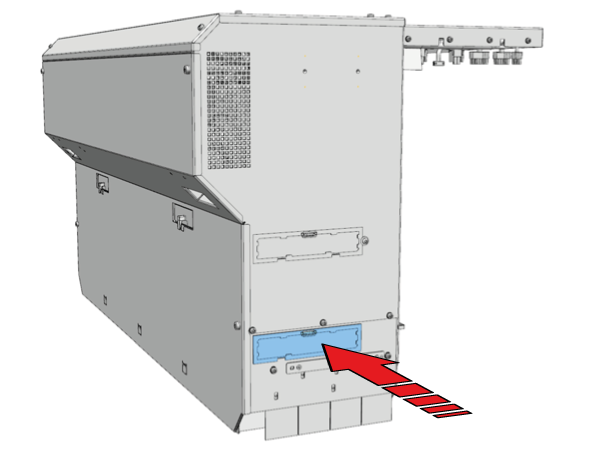

Insert the frame back into the slot. Make sure you feel a subtle click. |
|
|
9 |
Repeat the procedure for the other filters. |
|
|
10 |
Dispose the gloves and used filters as chemical waste according to local regulations. |
|
|
11 |
Close the top cover. |
|
|
12 |
On the user interface, tap [Confirm] to end the maintenance action. |
