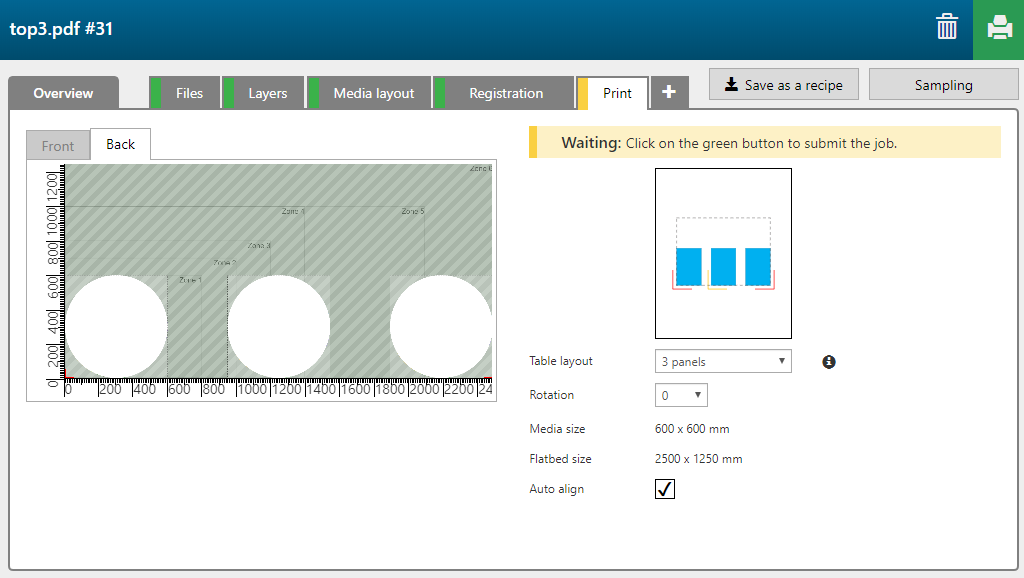

Information about printing in the [Print] tab

[Table layout] 

[Default] 

[Print on one or two panels.]

[Multiple panels (side by side)] 

[Print on multiple panels at once, placed next to each other.] 

[2 Panels]

[Print two panels at once.] 

[3 Panels]

[Print three panels at once.] 

[2 panels (one per vacuum zone)] 

[A single batch (containing the 2 panels) will be sent to the printer.] For XT & XTF table only.

4 Panels

[A single batch (containing all 4 panels) will be sent to the printer.] For XT & XTF table only.

[Rotation] 

Enter the rotation of each panel in degrees (0, 90, 180, 270).

[Media size] 

Media size is defined in the [Media layout] section

[Flatbed size] 

fixed value

This value depends on the type of Arizona printer you use.

[Individual jobs] 

This option is only available when you tick the option [Symmetric dual origin] or the option [Custom dual origin].

Tick this option if you want to send each job or a batch of jobs to the printer individually.

Explanation:

If you need to print jobs or a batch of jobs at both ends of an XT table, you have two options:

• Create a single batch containing all print jobs for both areas. In that case you don't need to click on print twice at the printer, but you have less control at the printer.

• Submit individual jobs or a batch of jobs - one for each area. In that case you will have to click on print twice at the printer, but you have more flexibility at the printer.

[Symmetric dual origin] 

Tick this option if you want to print symmetrical on multiple panels.

Example:

Place one panel on the bottom-left and start to print. While the first panel is printed, place another panel on the top-right.

This option is only available when the number of panel copies is more than 1.

[Custom dual origin] 

Tick this option if you want to print on two customized areas on the table.

This option is only available when the number of panel copies is more than 1.

[Custom horizontal offset] 

The custom offsets for the second panel when you use [Custom dual origin].

[Custom vertical offset] 

[Horizontal offset] 

Offsets for the first panel. These values are also used when you don't have dual origin.

[Vertical offset] 

[Media alignment side] 

Choose [Left] or [Right] 

[Back side in opposite corner] 

The back side will be printed in the opposite corner.

[Panel {0} offsets] 

[Media horizontal offset] 

Horizontal offsets

[Media vertical offset] 

Vertical offsets
