You can use the printer discovery tool to easily add printers to PRISMAprepare. The newly added printer is not automatically available in PRISMAprepare. You have to close and open PRISMAprepare to load the printer in the application.
With this printer discover tool, you can detect printers on your network and get the configuration of the printers by standard SNMP protocol. The SNMP protocol must be enabled on the printers. When SNMP is not enabled, you can still add printers manually.
You can discover printers on the network either by broadcast, by scanning a range of IP addresses or by defining a subnet mask. By default, the range of IP addresses and the subnet mask are retrieved from the local IP address and the local Windows subnet mask.

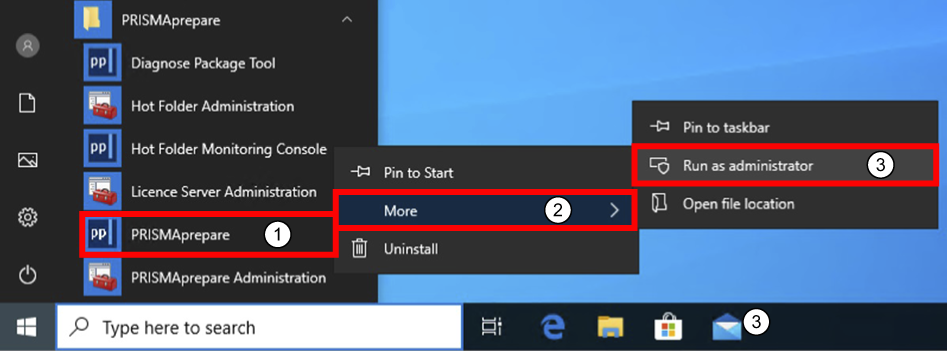

Open the [PRISMAprepare Administration] from the Windows Start menu. Run the [PRISMAprepare Administration] as administrator.

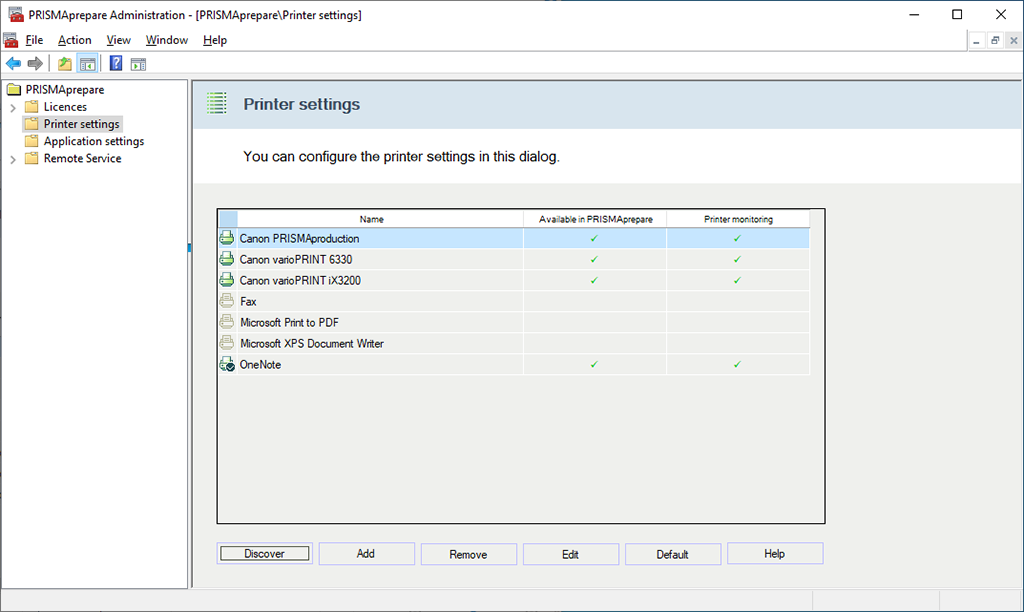

Select [Параметры принтера].

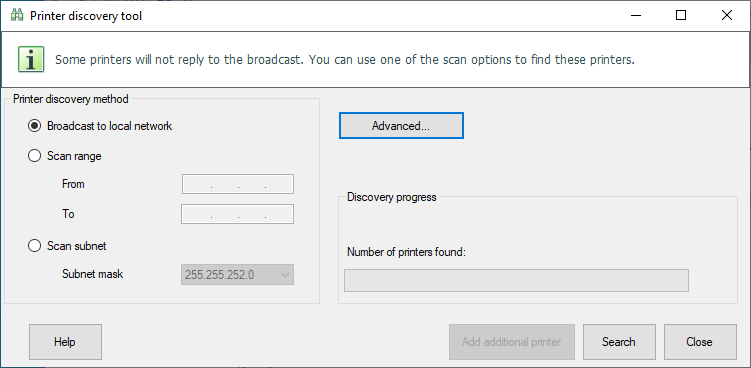

Click the [Обнаружить] button to launch the [Средство обнаружения принтера].
Check on which network your printers reside and select the concerning option to discover your printers. In this example, you printers are on your local network.
|
Discovery method |
Description |
|---|---|
|
[Передать в локальную сеть] |
Use this discovery method when printers are connected to the local network. SNMP enabled printers that recognise this type of broadcast will respond.  NOTE
Not all SNMP enabled printers respond to the broadcast. |
|
[Диапазон сканирования] |
Use this discovery method when printers are connected to another subnet of the network than the local network. NOTE
When you have multiple network cards in your system you should use the scan range discovery method. Scan a range of IP addresses for SNMP enabled printers from the lowest to the highest IP address. |
|
[Сканировать подсеть] |
Use this discovery method when you network is divided into sub networks. Scan the defined subnet for SNMP enabled printers. The system uses the subnet mask to determine the scan range. You can change the subnet mask. |

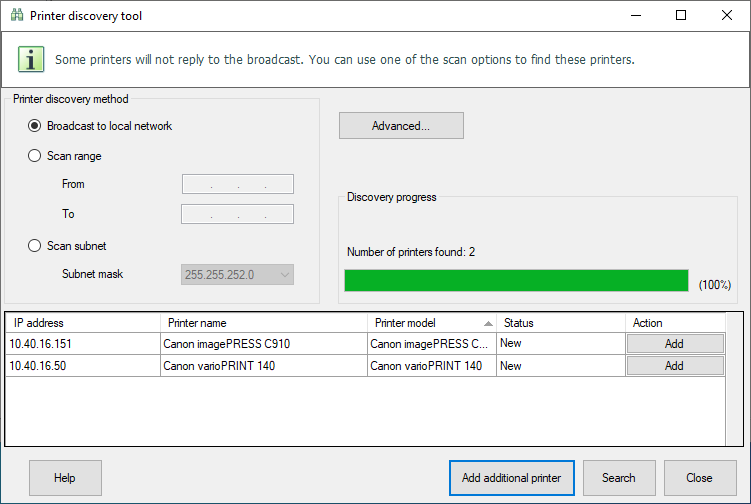

Click [Поиск] to start the discovery of printers.
To add one of the found printers, continue with the next step.
However, when no printer has been found, or when you want to add a different printer manually, you can click button [Добавить дополнительный принтер] to add a printer manually. For example, SNMP is not enabled on a printer. Therefore, the printer discovery tool cannot find the printer. Start with step 4 in procedure Discover a new printer.
Click [Добавить] to add your printer to PRISMAprepare. In this example, you want to add the "imagePRESS C910".

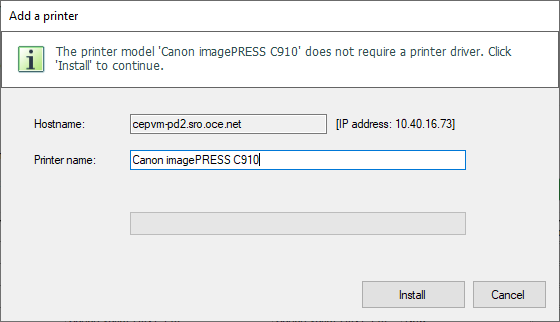

Click [Установить].

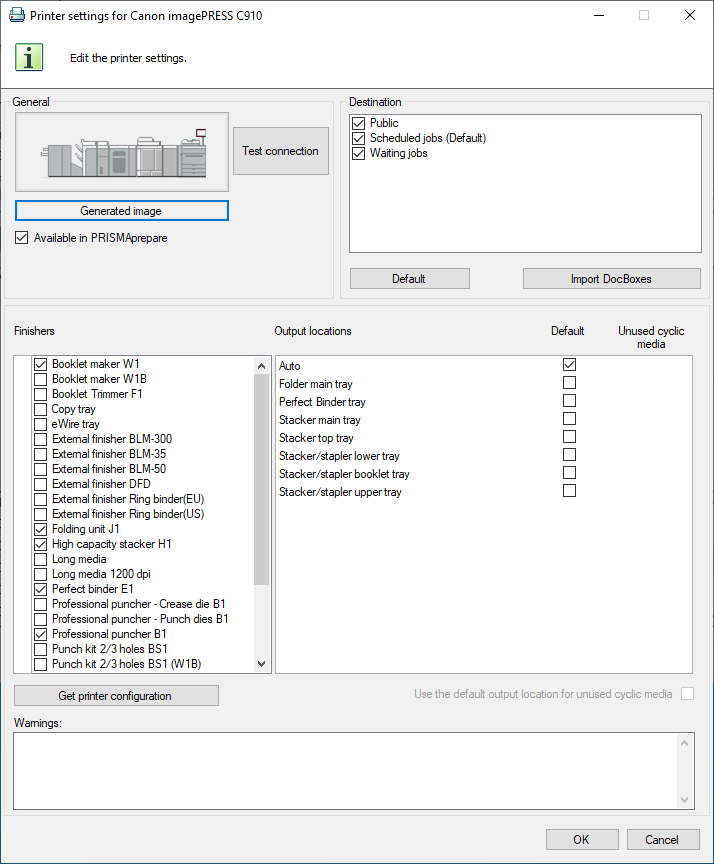

You can configure the printer when the printer is installed and available for PRISMAprepare. For example, you can select the print queues (Destination), the finishers and the output locations of the finishers.

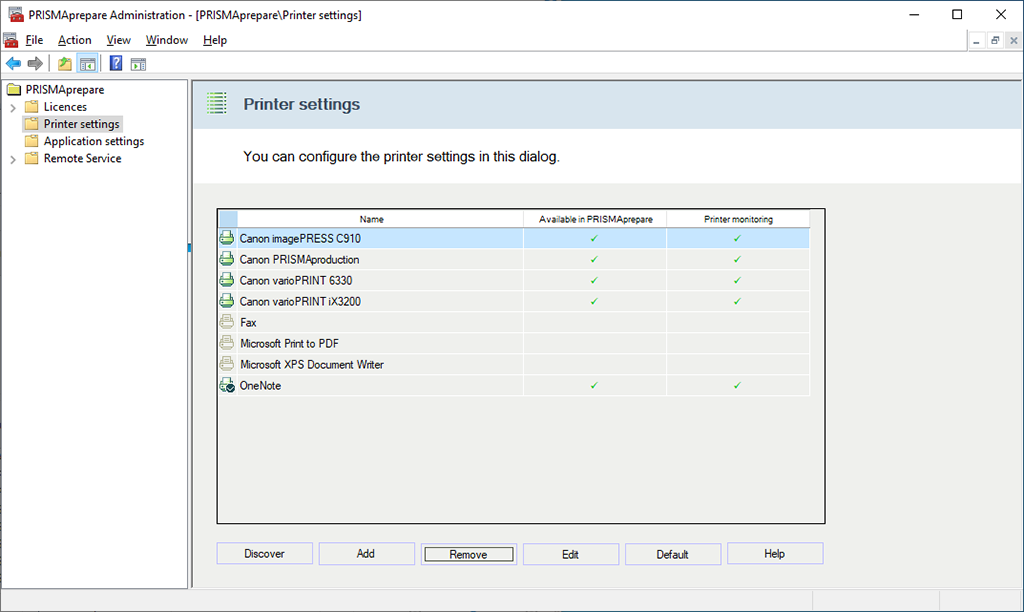

Click [OK], then close the [Средство обнаружения принтера]. The printer is now available to PRISMAprepare.
Click button[Дополнительно...] to define SNMP parameters. These parameters are used during the scan process. Some of them are also used to configure the discovered printers.
|
Setting |
Explanation |
|---|---|
|
[Попытки:] |
Define how many times the tool tries to contact a printer. |
|
[Время ожидания (мс):] |
Define the response timeout of a printer in ms. |
You can select which SNMP version is supported by the printer:
SNMP V1
SNMP V3
You can define the following settings when you select SNMP V1:
|
Setting |
Description |
|---|---|
|
[Сообщество с правом на чтение:] |
The read community name is used to identify the group of devices that support printer monitoring. Default value 'public'. |
You can define the following settings when you select SNMP V3:
|
Setting |
Description |
|---|---|
|
[Имя пользователя:] |
Define a user name for the authentication service. |
|
[Контекст:] |
'Context' refers to the collection of management information accessible by the SNMP entity. This setting is optional. |
|
[Протокол аутентификации:] |
Select the authentication protocol that is used by the printer.
|
|
[Пароль для аутентификации:] |
The 'Authentication password' is the password required for the authentication service. |
|
[Подтверждение пароля:] |
Confirm the authentication password. |
|
[Протокол обеспечения конфиденциальности:] |
Select the encryption algorithm that is used by the printer.
|
|
[Секретный пароль:] |
The 'Privacy password' is the password required for the privacy (encryption) service. This setting is optional. |
|
[Подтверждение пароля:] |
Confirm the privacy password. |
Once the discovery starts, using the selected scan method and its parameters, progression status information shows the current number of scanned IP addresses and the current number of printers found. The result of the scan process is updated progressively and displays the following information:
|
Column header |
Explanation |
|---|---|
|
[IP-адрес] |
The printer IP address. |
|
[Имя принтера] |
The Windows printer name if the printer is already defined in the local Windows system, else the model name is used as printer name. |
|
[Модель принтера] |
The printer model. |
|
[Состояние] |
The printer configuration status. The following status can be shown:
|
The following actions are available depending on the configuration status of the printer:
[Добавить]
The configuration status of the printer is [Создать]. Click [Добавить] to add the printer to the local system and/or configure the printer for PRISMAprepare.If the driver is required but not yet installed, the action button also launches the printer driver installation wizard before adding the printer to the local system.
For printers for which no driver is needed, the action button opens a dialogue that allows adding the printer to PRISMAprepare. No printer is added to the local system. The finishers are automatically retrieved from the printer.
[Редактировать]
The configuration status of the printer is [Настроено]. Click [Редактировать] to edit the configuration of the printer.
[Настройка]
The configuration status of the printer is [Не настроено] or [Неверная конфигурация]. Click [Настройка] to configure the printer for PRISMAprepare. The available finishers are automatically retrieved from the printer.
[Удалить]
The configuration status of the printer is [Нет ответа] or [Принтер неисправен]. Click [Удалить] to remove the printer from the local system and from the PRISMAprepare configuration.
