For PlotWave 750 and PlotWave 900 you have to specify the individual fold parameters manually.
|
Value |
Description |
|---|---|
|
[First fold only] |
The output is folded only in one direction. This option is useful for long output. |
|
[Full fold] |
The output is folded twice (vertically and horizontally). |
It is the location where you want to have the folded package delivered.
When the [Fold type] is set to [First fold only], there is only one delivery destination available: [First Fold Delivery Tray]
When the [Fold type] is set to [Full fold], the folded package can be delivered to a stacker or to a belt.
NOTE
The availability of the next values depends on the configuration of your folding device.
|
Value |
Description |
|---|---|
|
[None] |
The folded package is delivered to the indicated destination without any additional finishing option. |
|
[Binding edge] |
The [Binding edge] is an additional edge set to punch holes or to create tabs on a folded printout. Upon selection, enter the value to define the width of the strip to add to the folded package. |
|
[Reinforcement strip] |
The [Reinforcement strip] is an additional strip, smaller than the folded package, added during the finishing phase (by the folder). It is usually a prepunched, self-adhesive strip. It is used for storage purpose mainly (for example, storage in a binder). |
When the folded package is to be delivered to a belt, you can see an additional [Punched binding edge] checkbox.
The [Punched binding edge] is similar to the [Binding edge] but it indicates that the printing system is associated with a punching unit.

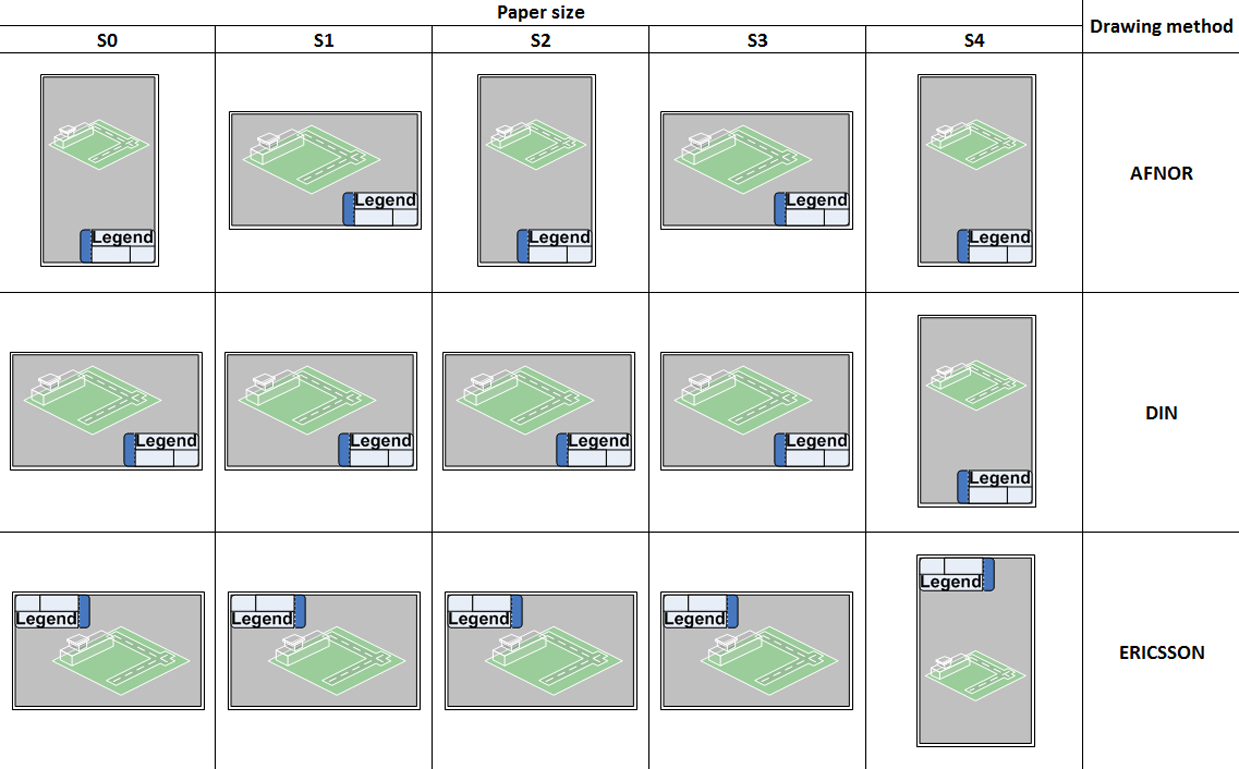

This option forces the legend of your document(s) to the bottom left corner. Use it, for instance, in association with an automatic rotation behavior, in order to fold large AFNOR drawings.
Check the [Change folded package size] checkbox. Then, enter a value that fits within the allowed range.
NOTE
When a setting is unavailable due to the printing system configuration, it is grayed out in the interface.
