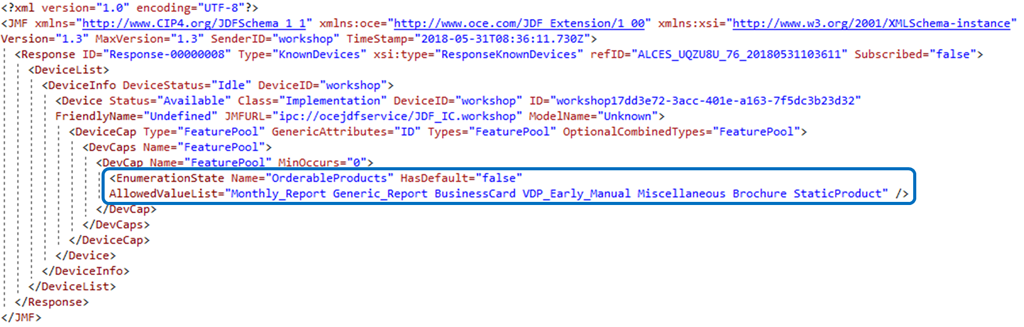

Response message from PRISMAdirect to the KnownDevices query

PRISMAdirect returns the products available for a certain JDF endpoint. These products can be ordered by a customer.

The relevant parameters for PRISMAdirect

The Response element:

• ID

  PRISMAdirect generates a response ID. In this example, "Response-0000008" which means that this is the 8th response message of PRISMAdirect. PRISMAdirect restarts numbering when the JDF service is restarted.

• Type

  The type of response message. In this example, a response to the command KnownDevices.

• refID

  The ID of the initial KnownDevices command.

• Subscribed

  • False: the query has not subscribed to automatic status updates

  • True: the query has subscribed to automatic status updates

The EnumerationState subelement:

• Name="OrderableProducts"

  PRISMAdirect only supports the value OrderableProducts.

• HasDefault

  PRISMAdirect always returns false.

• AllowedValueList

  The orderable products available at the JDF endpoint identified by DeviceID. In this example, the name of the JDF endpoint is "workshop".

  PRISMAdirect can return he following products: VDP, link to file and link to folder. However, these products are not supported for JDF submission.
