The dashboard indicates when you must prepare the replacement of a full ink waste container. (Filling levels of supplies and waste)
|
The CMYK ink waste container is full. |
|
The CMYK ink waste container is full and the buffer is nearly full. |
|
Both the CMYK ink waste container and buffer are full. An action-required screen appears and shows how to replace the full container. |

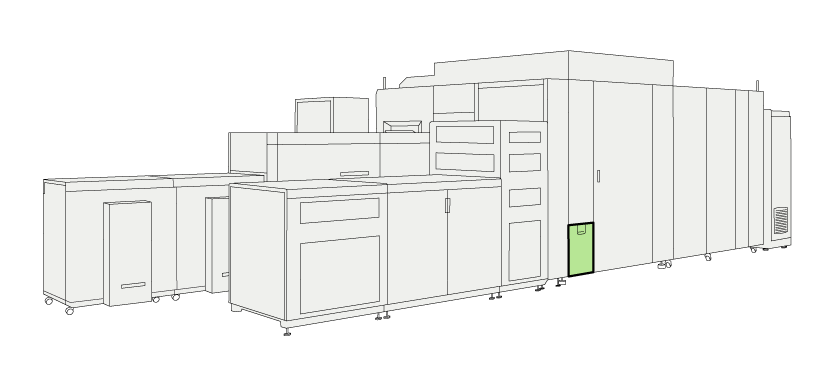

Location of the waste compartment
NOTE
In order to keep your hands clean, it is advised to use nitrile gloves when you work with ink, ColorGrip, PML, or SU70. For details see the related material safety data sheets. (Learn about printer maintenance)
Inks, ColorGrip, PML and/or SU70 contain 1,2-Benzisothiazol-3(2H)-one. From the point of view of occupational health and safety, it is not recommended that people who are sensitive to chemicals (e.g., people with asthma) work with ink or chemicals.
Keep full containers tightly closed.
When you spill any liquid, wipe up the drops with disposable towels and transfer the used towels to a sealable container appropriate for disposal.
Take an empty container, labeled as waste container, and place the container next to the waste compartment.
The instruction video for this maintenance action is available, see Replace the CMYK ink waste container.
|
Action |
|||
|---|---|---|---|
|
1 |
Carefully open the door of the waste compartment. |
||
|
2 |

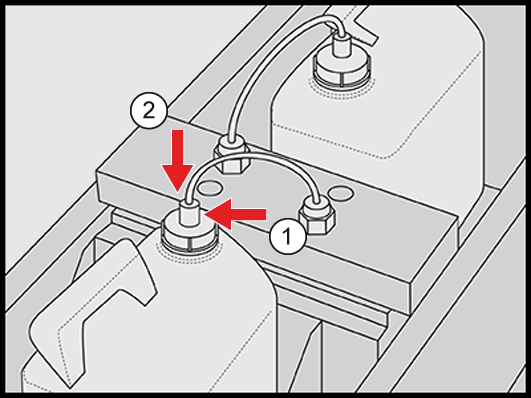

Press the connector of the full container and disconnect the supply tube from the cap. NOTE
The supply tube can drip liquid. Use cleaning cloths to clean the tube. |
|
|
|
3 |
Take out the full container. |
||
|
4 |
Unscrew the caps of the full and empty container, swap the caps and fasten them. |
||
|
5 |
Place the empty container in the tray. |
||
|
6 |
Press the connector and carefully connect the supply tube to the cap of the empty container. |
|
|
|
7 |
Carefully close the door of the waste compartment. |
||
Dispose the container according to the safety regulations delivered with your product.
