Use page programming

With the optional page programming function, you can create subsets and page ranges to apply different layout, media and finishing settings within a job. The page programming window alerts you when you create settings that do not match job properties.

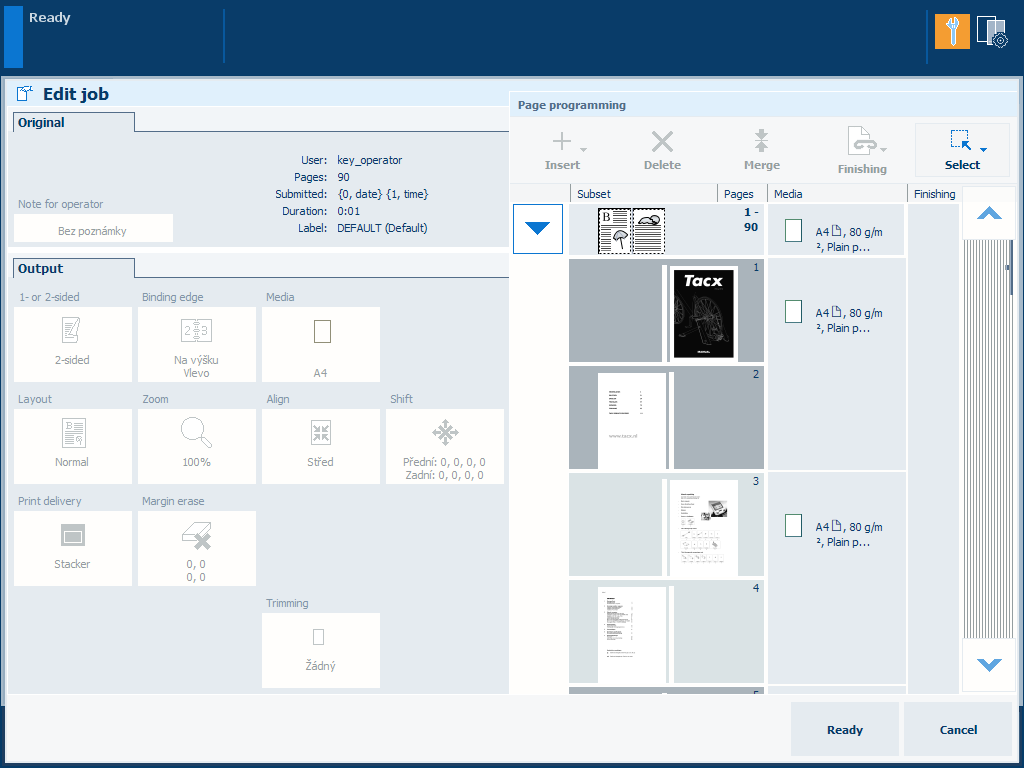

Page programming

Create a new subset

1. Select a subset from the list of subsets.

2. Touch [Split].

3. Select the first page of the new subset.

Combine subsets

1. Select the subsets to combine.

2. Touch [Merge] to create the new subset.

3. Define the settings in the [Output], if required.

Change the settings of a subset

1. Select the subset, sheet or page you want to change.

   • Touch one or more subsets from the list of subsets.

   • Use the drop-down icon to select pages or sheets of a subset.

   • Use the [Select] menu to select a page range.

2. Define the settings in the [Output].

3. Repeat step 1 and 2, if required.

4. Touch [Ready] to apply the settings.

Merge finishing settings

1. Select the subsets that must have the same finishing settings.

2. Touch [Merge finishing] and select the subset to use the finishing settings.

   Use [Split finishing] to get the original finishing settings.

Add a page to a page range or subset

1. Select the subset or page range.

   • Use the subset drop-down icon to select pages of a subset.

   • Use the [Select] menu to select a page range.

2. Indicate where you want add a page.

   • Use [Insert] → [Insert page before]  to add a page before a page range or subset.

   • Use [Insert]  → [Insert page after]  to add a page after a page range or subset.

Delete a page, sheet, or subset

1. Select the part you want to delete.

   • Use the subset drop-down icon to select sheets and pages of a subset.

   • Use the [Select] option to select a page range.

2. Touch [Delete] to delete the subset or page range.
