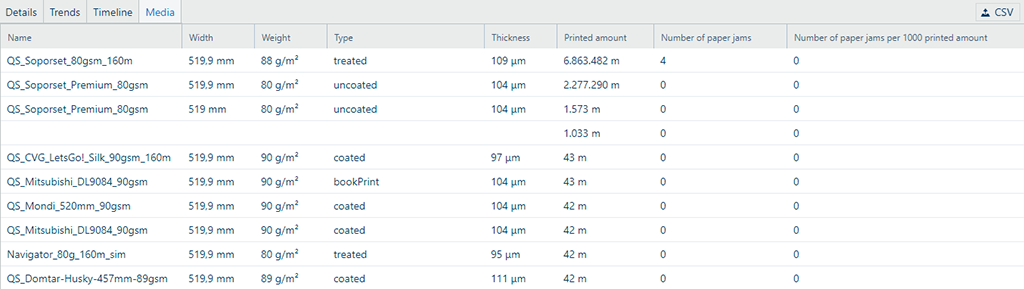

The [Media] view shows the detailed information about the used media for the selected period. The data shown in the [Media] view depends on the printer type and its capabilities.
Media property |
Cutsheet (PRISMAsync) |
Cutsheet (non-PRISMAsync) |
Continuous feed |
imagePROGRAF |
colorWAVE & plotWAVE |
---|---|---|---|---|---|
[Name] |
![]() |
![]() |
![]() |
![]() |
|
[Size] |
![]() |
![]() |
|||
[Width] |
![]() |
||||
[Weight] |
![]() |
![]() |
|||
[Type] |
![]() |
![]() |
|||
[Other] (additional media property, for example, tab, cycle, color, and so on) |
![]() |
||||
[Thickness] |
![]() |
||||
[Printed amount] |
![]() (sheets) See 1 . |
![]() (sheets) See 1 . |
![]() (meters/feet) |
![]() (square meters/square feet) |
![]() (square meters/square feet) |
[Paper jams] |
![]() |
![]() |
![]() |
||
[Paper jams per 1000 printed amount] |
![]() |
![]() |
![]() |
||
[Sentry rejects] |
![]() (only VarioPrint i-series and varioPRINT iX-series) |
||||
[Media rejected by sentry per 1000 printed amount] |
![]() (only VarioPrint i-series and varioPRINT iX-series) See 2. |
The number of printed physical sheets is reported. For example, an A3 sheet is counted as one sheet, not as two sheets.
Keep in mind that the number of sentry rejects reflects the number of occurrences of sentry rejects, and not the number of rejected sheets.
You can export the overview of the used media for the selected device in the [Device] app as a CSV file. To export the data, click the
[Export to CSV] button.
The CSV file contains data per media type for the selected interval. The data is raw, and the metric system of measurement is used.
