Create a new application in PRISMAguide XL Engine

Introduction

This topic describes how you can create a new application. To use the same settings later, you can store this application as a recipe.

In this example we are creating a double sided application with an image (Watermark) that is not in the PDF. This image we want to add to the recipe.

Open a PDF file in ONYX Thrive.
Select the PDF file and click on [PRISMAguide].

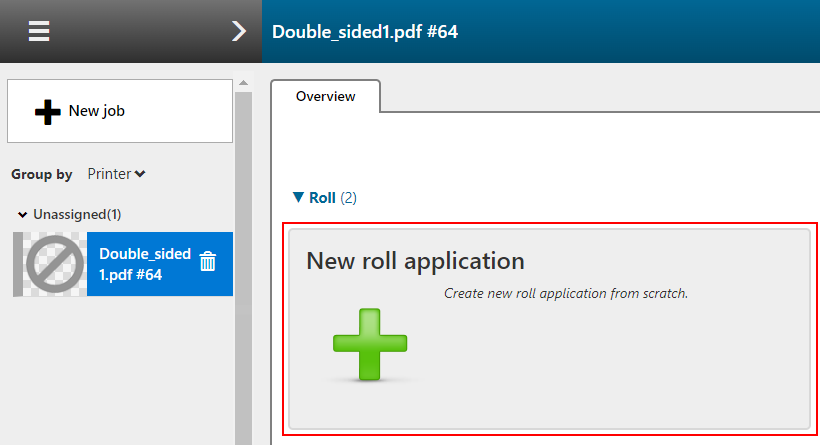

Click on [New application].
A new PRISMAguide XL Engine job is created. The file has two layers, one intended for the front and one for the back side. Also we want to add a watermark on the front side.
Open the [Files] tab.

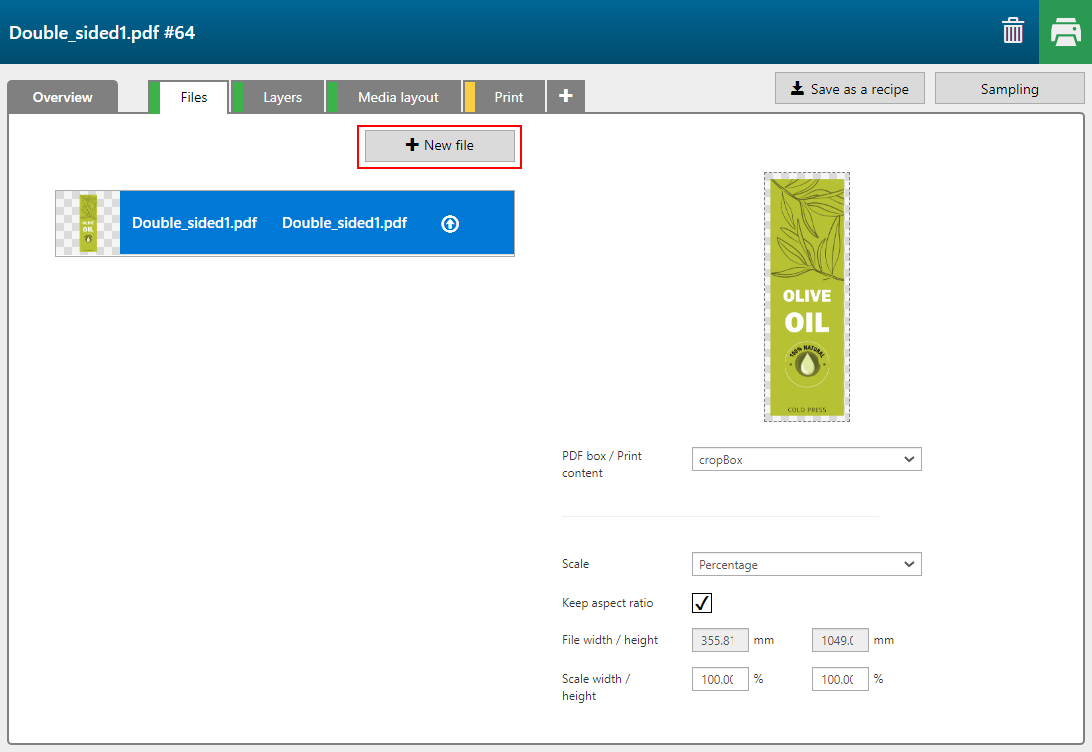

Click on the button [New file] to add a file to the application.
Click on the icon to import the file.

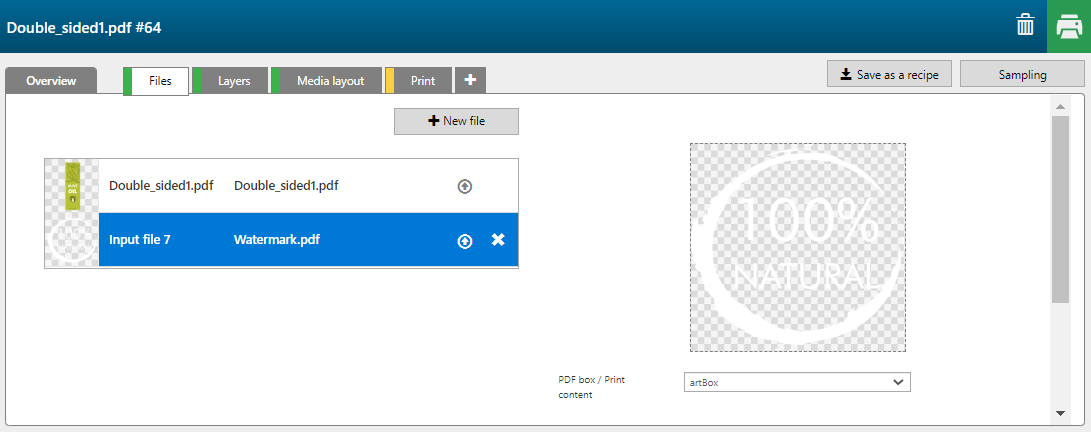

In this example we added Watermark.pdf to the application.
Open the [Layers] tab.

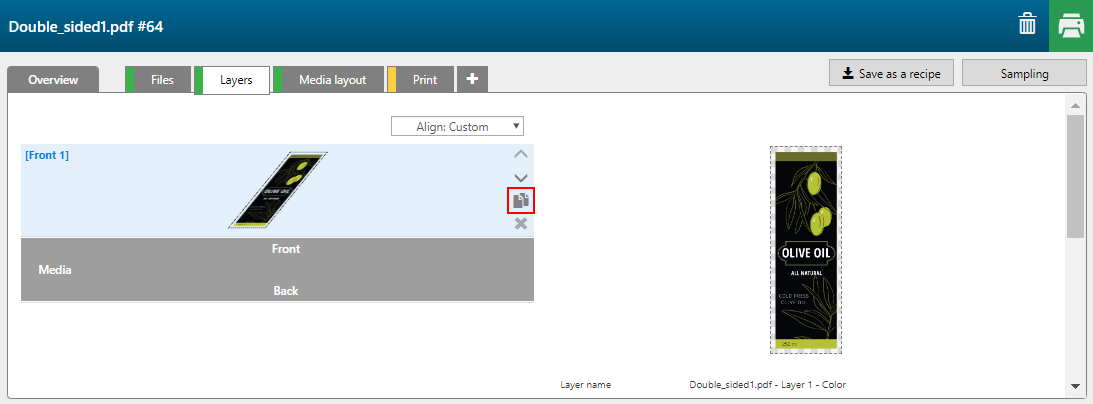

Click on the duplicate button to create 2 extra layers.

We want to create 2 [Front] layers and one [Back] layer, so move one layer to the back.

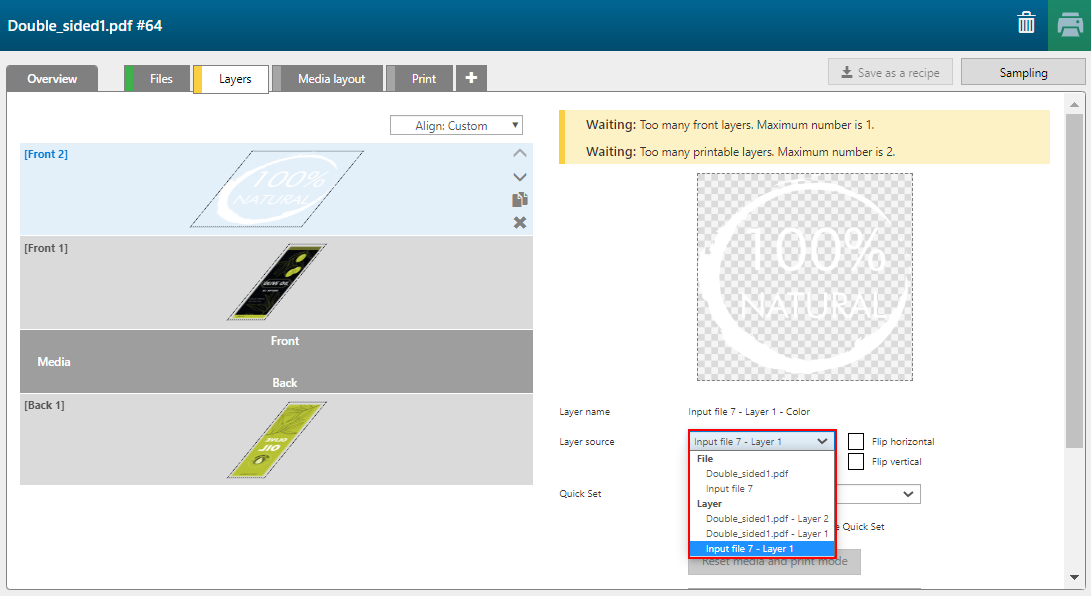

Assign the [Layer source] and [Type] according to the table below.

You can assign pages, layers or spot colors, present in the input file(s) as input to a print layer.

Layer	[Layer source]	[Type]	Remark
[Front] 2	Input file-Layer-1	[Color]	The image is printed in CMYK. The layer will be merged with the other [Front] layer.
[Front] 1	Double_sided.pdf-Layer-1	[Color]	The image is printed in CMYK.
[Back] 1	Double_sided.pdf-Layer-2	[Color]	The image is printed in CMYK.

Layer

[Layer source]

[Type]

Remark

[Front] 2

Input file-Layer-1

[Color]

The image is printed in CMYK.

The layer will be merged with the other [Front] layer.

[Front] 1

Double_sided.pdf-Layer-1

[Color]

The image is printed in CMYK.

[Back] 1

Double_sided.pdf-Layer-2

[Color]

The image is printed in CMYK.

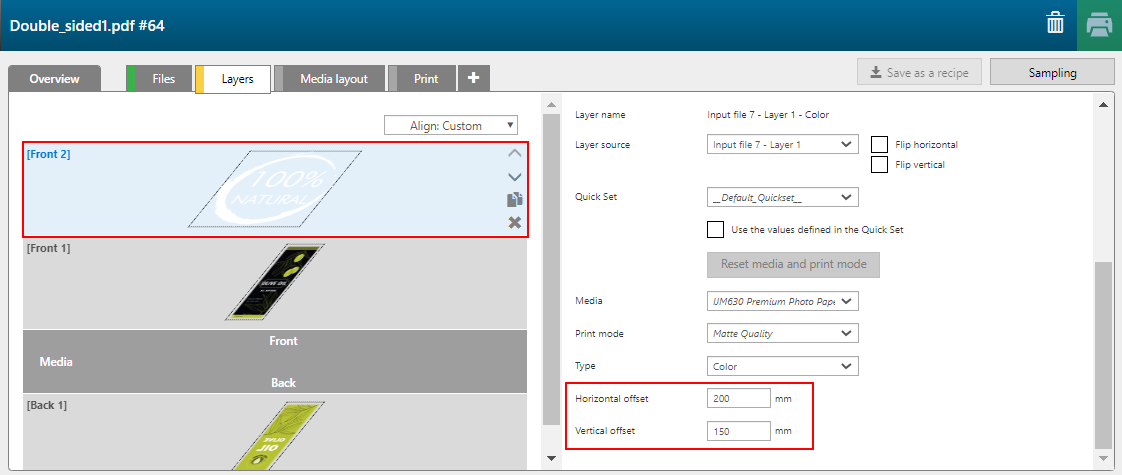

Select the [Front] 2 layer and define the place of the watermark image.
Set the offset values for the image on the front. Look at the preview in the [Overview] tab to check the offset values.

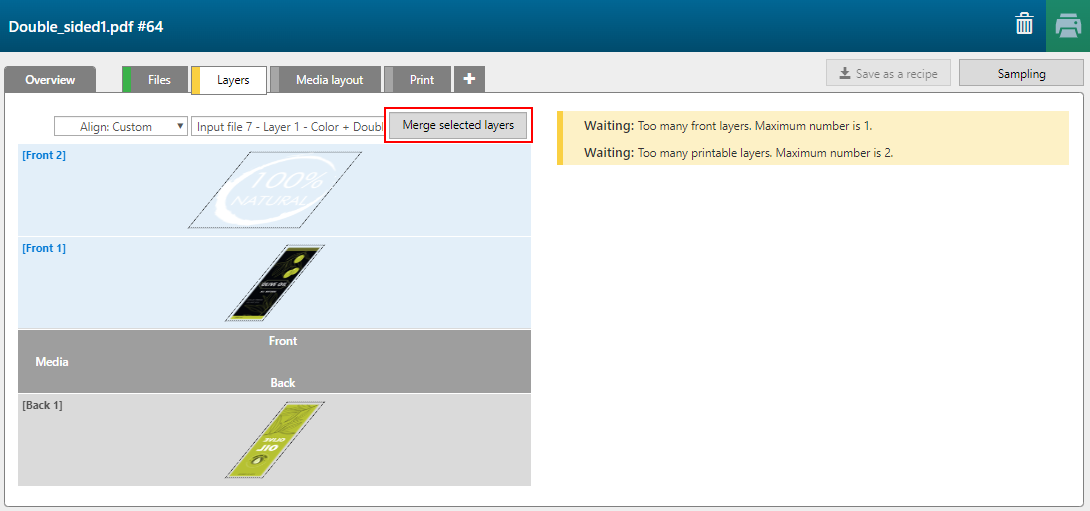

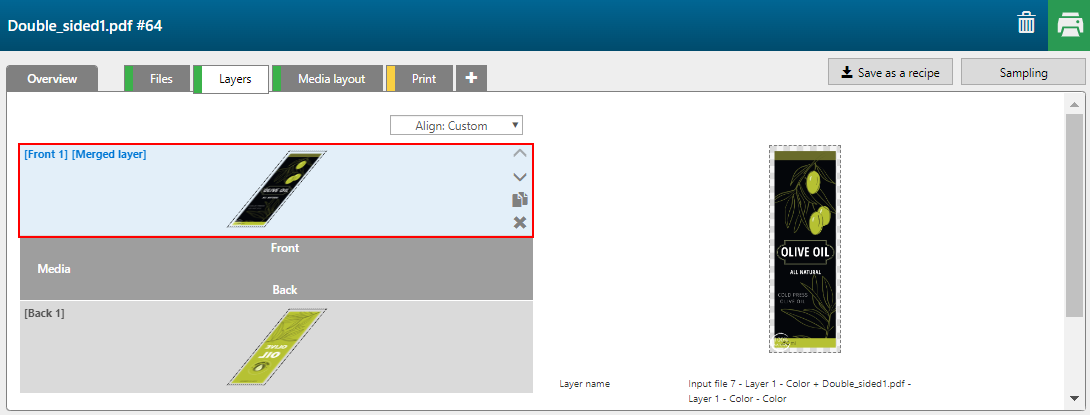

Select [Front] 1 and [Front] 2 layer and click [Merge selected layers].

NOTE
This application can only have one layer for the front and one for the back side.

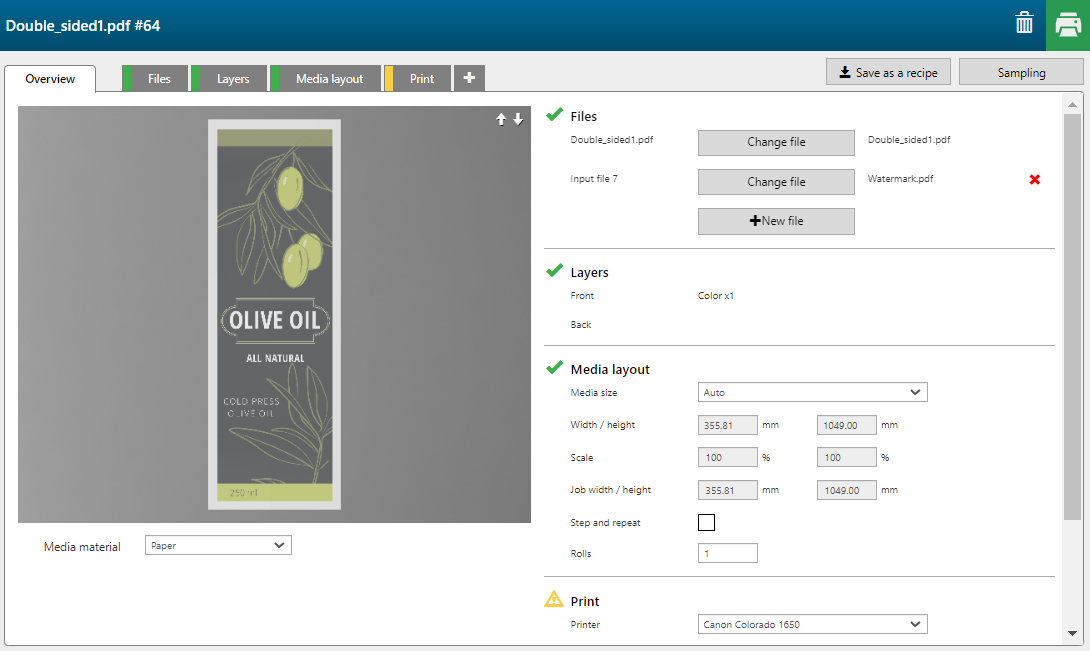

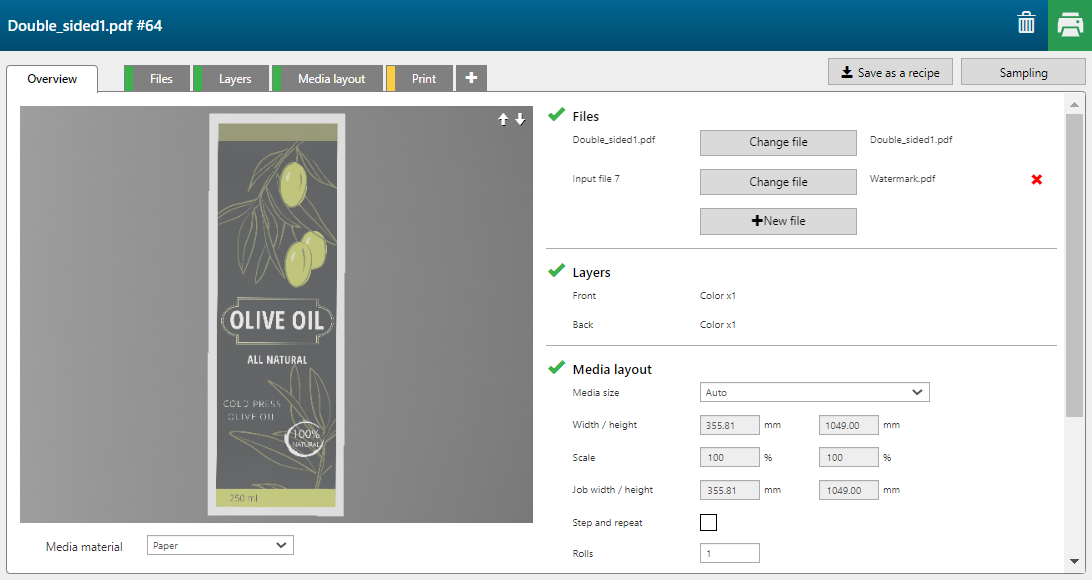

Open the [Overview] tab. Click-and-hold the left mouse button to rotate the 3D view to check the application. Notice that the watermark is visible on the front side of the application
Define the [Media layout] and [Print] specifications, then click on the [Print] button.

NOTE
Now you can save the application as a recipe for future use. See: Save an application as a recipe
