Remove a media roll

IMPORTANT

CAUTION

Watch your fingers when you handle the media roll.

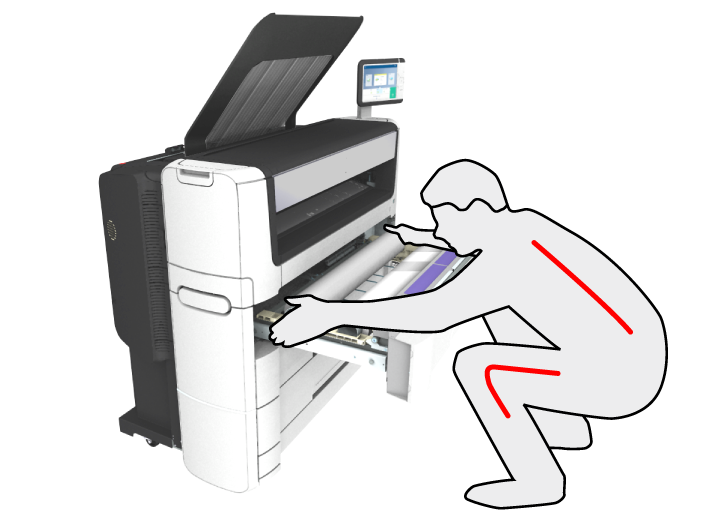

If you want to remove an A0 media roll from position 2, make sure to bend your knees, as indicated below, to spare your back.

Procedure

Pull firmly on the media drawer to open it.
Roll the media back manually, to remove the media from the metal paper guide.

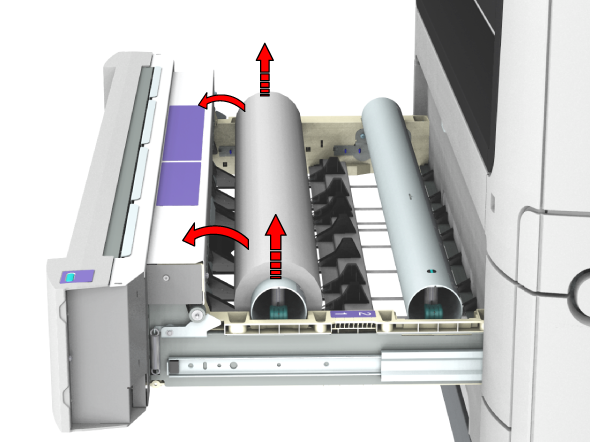

Use both hands (as indicated) to lift the roll holder with the media roll and put it on the roll loading station.

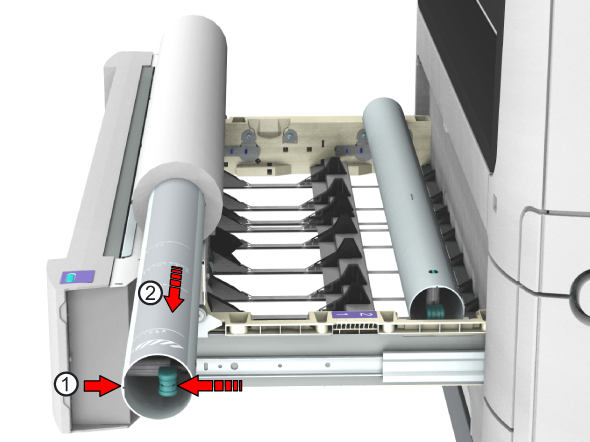

Pull the handle of the roll holder locking mechanism towards you and remove the roll holder from the core of the media roll.
Put the empty roll holder back into the drawer (as shown in the illustrations)
Remove the media roll from the roll loading station.
Store it in a safe place, so that it cannot fall over or roll away.
